Product Overview
INFINEON IPW80R290C3AXKSA1 Power MOSFET, N Channel, 800 V, 17 A, 0.29 ohm, TO-247, Through Hole
Product details
| Channel Type |
N Channel |
| Continuous Drain Current Id |
17A |
| Transistor Case Style |
TO-247 |
| Rds(on) Test Voltage |
10V |
| Power Dissipation |
227W |
| Operating Temperature Max |
150°C |
| Qualification |
AEC-Q101 |
| Drain Source Voltage Vds |
800V |
| Drain Source On State Resistance |
0.29ohm |
| Transistor Mounting |
Through Hole |
| Gate Source Threshold Voltage Max |
3.9V |
| No. of Pins |
3Pins |
| Product Range |
CoolMOS Series |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
INFINEON |
| Part Number |
IPW80R290C3AXKSA1 |
| Quantity |
Each |
| Technical Data Sheet (215.29KB) EN |
View or download |

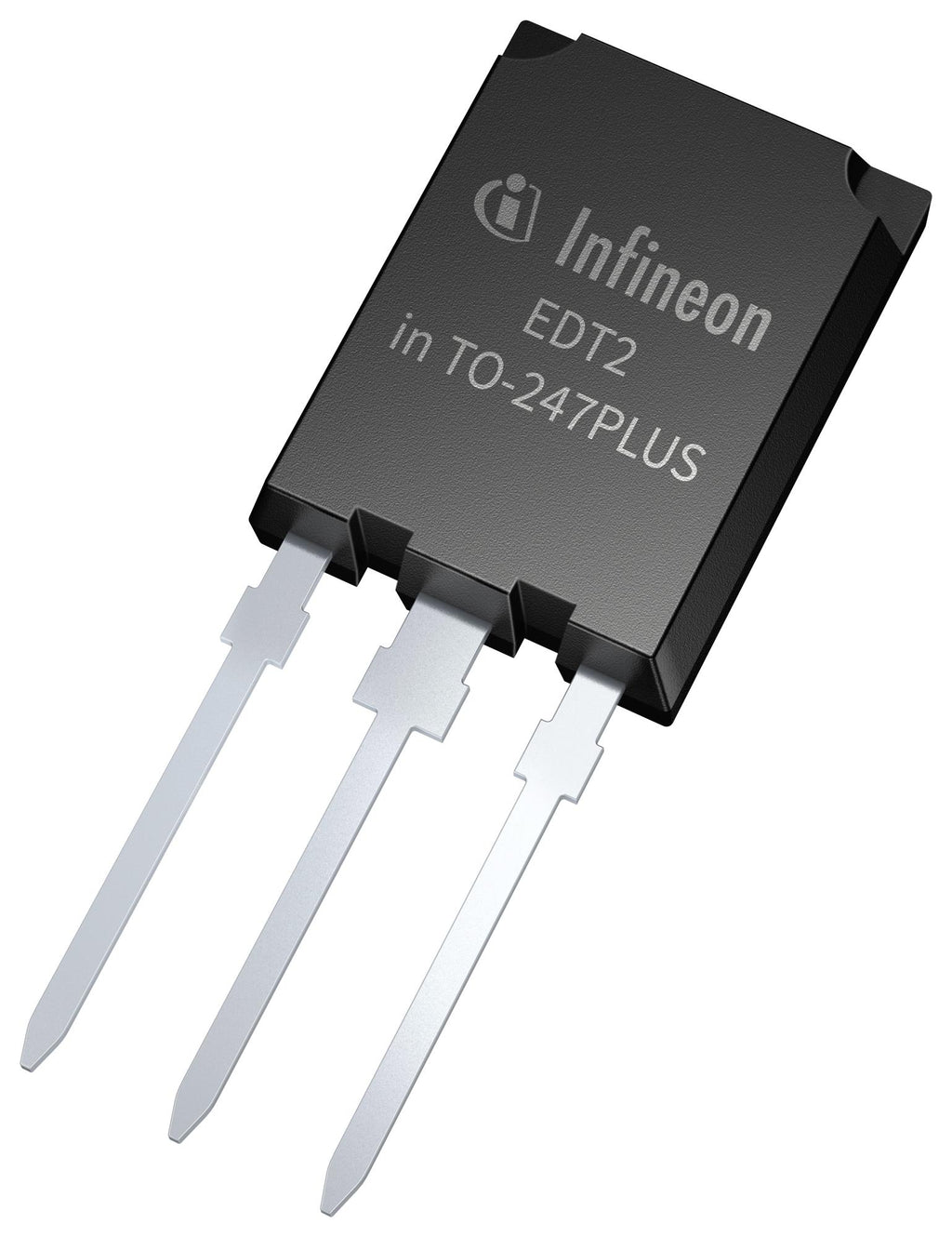

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
