Product Overview

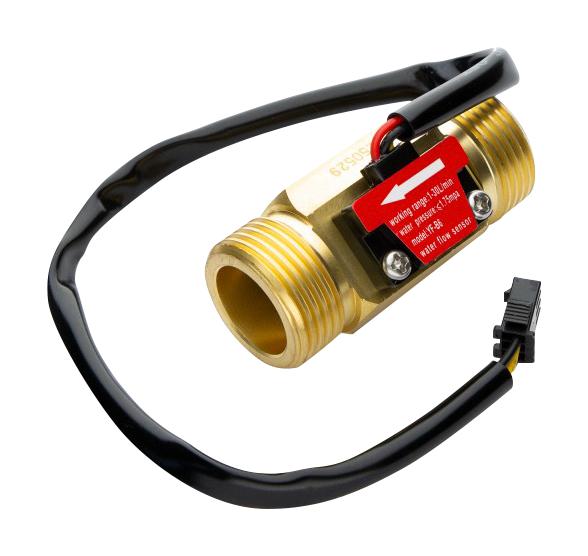

MIKROELEKTRONIKA MIKROE-6757 Water Flow Sensor, 1 l/min to 30 l/min, Male Thread, NPN, 3.5V to 24V
Product details
| Sensor Type |
Flow Sensor |
| Flow Rate Max |
30l/min |
| Operating Pressure Max |
1.75MPa |
| Supply Voltage Max |
24V |
| Sensor Output Type |
NPN |
| Process Connection Size |
25.55mm |
| Pipe Size |
- |
| Operating Temperature Min |
- |
| Product Range |
- |
| Flow Rate Min |
1l/min |
| Operating Pressure Min |
- |
| Supply Voltage Min |
3.5V |
| Accuracy |
± 5% |
| Media Type |
0 |
| Process Connection Type |
Male Thread |
| Sensor Mounting |
Connector |
| Operating Temperature Max |
80°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-6757 |
| Quantity |
Each |
| Technical Data Sheet (814.04KB) EN |
View or download |
