Product Overview

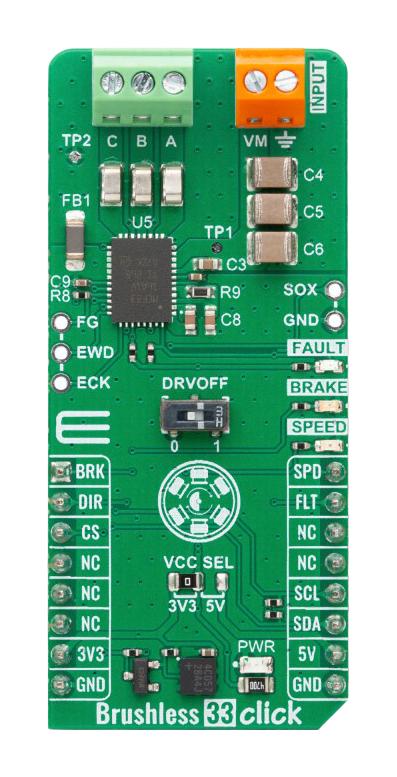

MIKROE-6481 is a Brushless 33 Click compact add-on board designed for precise BLDC motor control. This board features the MCF8316A, a sensorless Field Oriented Control (FOC) integrated FET motor driver from Texas Instruments. This Click board™ supports 12V to 24V BLDC or PMSM motors with up to 8A peak current, featuring a code-free sensorless FOC algorithm for smooth and quiet motor operation. Its integrated protections, non-volatile EEPROM for configuration storage, and versatile control options via PWM, analogue input, or I2C interface ensure reliable and flexible operation. Brushless 33 Click is ideal for residential and automotive fans, air purifiers, blowers, and medical CPAP devices. Brushless 33 Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard.
- GPIO, I2C, PWM interface
- Click board size L is 57.15 x 25.4mm
- Input voltage is 3.3V or 5V, external
Product details
| Accessory Type |
Brushless 33 Click Add-On Board |
| Product Range |
- |
| For Use With |
MikroE MikroBUS Compatible Development Boards |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-6481 |
| Quantity |
Each |
| Technical Data Sheet (997.05KB) EN |
View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
