Product Overview

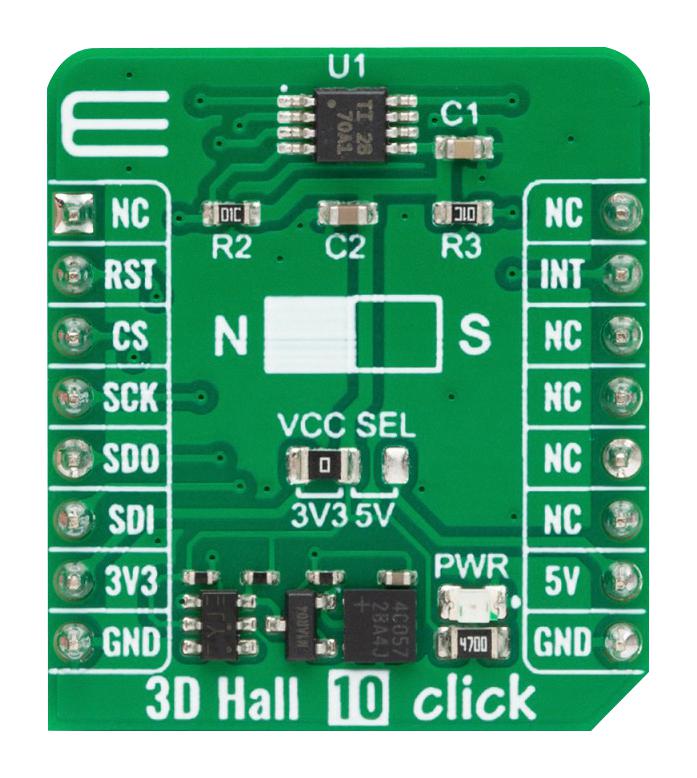

MIKROE-5988 is a 3D Hall 10 Click compact add-on board used to detect the strength of a magnetic field in all three dimensions. This board features the TMAG5170, a high-precision linear 3D Hall effect sensor from Texas Instruments. The TMAG5170 features an SPI interface for configuration by MCU. The measurement data is provided in digital format of 12-bits corresponding to the magnetic field measured in each X, Y, and Z axes. It can achieve ultra-high precision at speeds up to 20kSPS for faster and more accurate real-time control and offers multiple diagnostics features to detect and report both system and device-level failures. This Click board™ is designed for a wide range of industrial and personal electronics applications. It is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard.
- SPI interface
- Click board size S is (28.6 x 25.4mm)
- Input voltage is 3.3V or 5V
Product details
| Accessory Type |
3D Hall 10 Click Add-On Board |
| Product Range |
- |
| For Use With |
MikroE MikroBUS Compatible Development Boards |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-5988 |
| Quantity |
Each |
| Technical Data Sheet (987.73KB) EN |
View or download |
