Product Overview

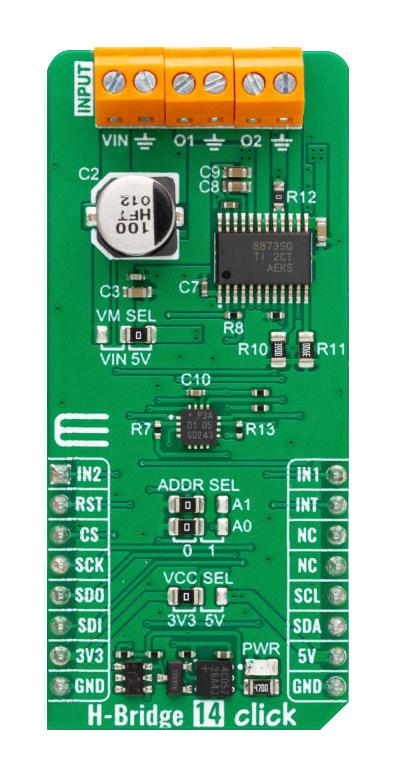

MIKROE-5916 is a H-Bridge 14 Click compact add-on board with an H-Bridge gate driver, also known as a full-bridge pre-driver. This board features the DRV8873, an automotive H-Bridge motor driver from Texas Instruments. The DRV8873 is an N-channel H-Bridge motor driver that can drive one bidirectional brushed DC motor, two unidirectional brushed DC motors, solenoids, or other resistive inductive loads. The motor driver operates from a single power supply and supports a wide input supply range from 4.5V to 38V. This Click board™ makes the perfect solution for the development of electronic throttle control, exhaust gas recirculation, side-view mirror tilt, e-shifter, air-flow diverter valve control, and more. H-Bridge 14 Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard. It comes with the mikroSDK open-source libraries, offering unparalleled flexibility for evaluation and customization.
- Click board size L is (57.15 x 25.4mm)
- Input voltage is 3.3V or 5V, external
Product details
| Accessory Type |
H-Bridge 14 Click Add-On Board |
| Product Range |
- |
| For Use With |
MikroE MikroBUS Compatible Development Boards |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-5916 |
| Quantity |
Each |
| Technical Data Sheet (1.08MB) EN |
View or download |
