Product Overview

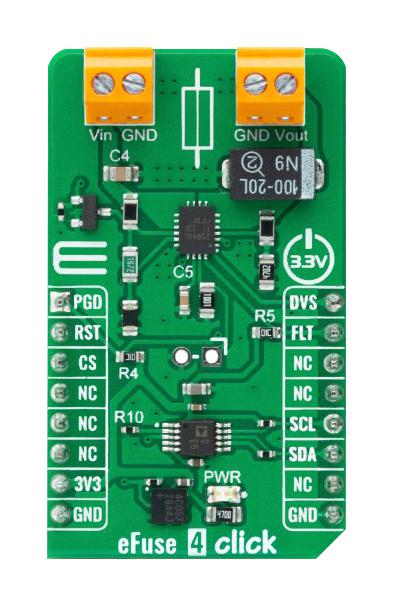

MIKROE-5501 is an eFuse 4 Click compact add-on board with a power path protection solution that limits circuit currents and voltages to safe levels during fault conditions. This board features the TPS25940, an eFuse power switch with reverse current blocking from Texas Instruments. The TPS25940 features a full suite of protection and monitoring functions, including a DevSleep™ mode that supports compliance with the SATA™ Device Sleep standard. The wide operating range from 2.7V to 18V allows control of many popular DC bus voltages. The additional potentiometer sets the overload and short-circuit current limit of the TPS25940, while the additional header allows external current monitoring. This Click board™ is suitable for systems with load-side holdup energy that must not drain back to a failed supply bus. eFuse 4 Click is fully compatible with the mikroBUS™ socket and can be used on any host system supporting the mikroBUS™ standard.
- Click board size M is 42.9 x 25.4mm
- Input voltage is 3.3V
Product details
| Accessory Type |
eFuse 4 Click Add-On Board |
| Product Range |
- |
| For Use With |
MikroE MikroBUS Compatible Development Boards |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-5501 |
| Quantity |
Each |
| Technical Data Sheet (937.92KB) EN |
View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
