Product Overview

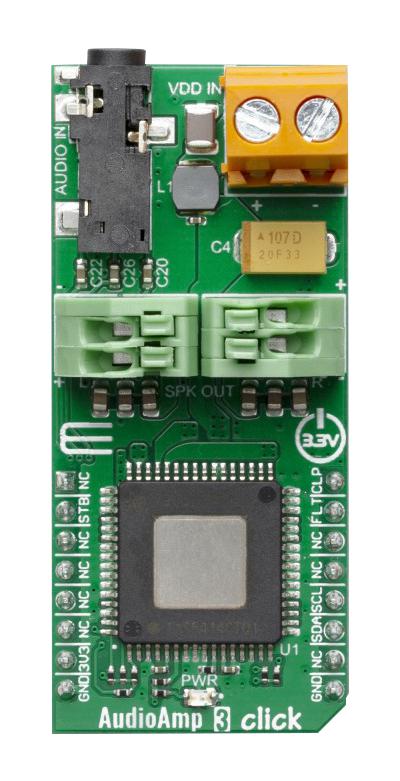

MIKROE-3901 is an AudioAmp 3 Click stereo audio amplifier, capable of delivering up to 79W per channel with the 4ohm load. It is based on the TAS5414, a class-D integrated amplifier, which utilizes a highly efficient switching scheme. Advanced EMI Suppression with Spread Spectrum Control allows using ferrite bead filters instead of bulky inductors, still maintaining the required EMC levels. The TAS5414 IC is equipped with a set of protection features, allowing a reliable operation. AudioAmp 3 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
- GPIO, I2C interface
- Click board size L is 57.15 x 25.4mm
- Input voltage of 3.3V, external
Product details
| Accessory Type |
Audio Amp 3 Click Add-On Board |
| Product Range |
- |
| For Use With |
MikroE MikroBUS Compatible Development Boards |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-3901 |
| Quantity |
Each |
| Technical Data Sheet (996.36KB) EN |
View or download |
