Product Overview

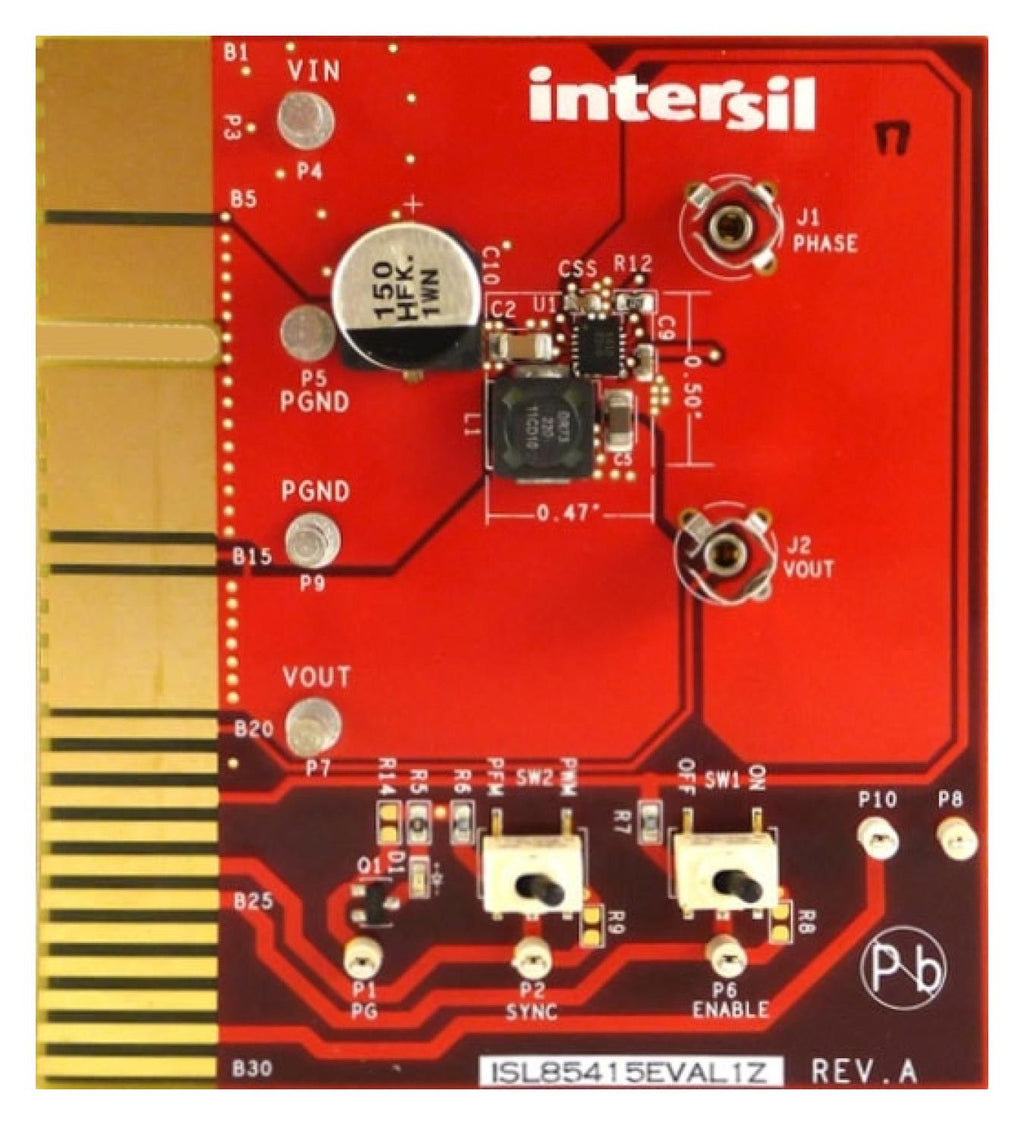

ISL85415EVAL1Z is a synchronous buck evaluation board intended for use for point-of-load applications sourcing from 3V to 36V. The kit is used to demonstrate the performance of the ISL85415 wide VIN low quiescent current high-efficiency synchronous buck regulator with 500mA of output current. The ISL85415 is offered in a 4mm x 3mm 12 lead DFN package with a 1mm maximum height. The converter occupies 1.516cm² area.
- Integrated high-side and low-side NMOS devices
- Selectable PFM or forced PWM mode at light loads
- No compensation required
- Internal fixed (500kHz) or adjustable switching frequency 300kHz to 2MHz
- Internal or external soft-start
- Minimal external components required
- Power-good and enable functions available
Product details
| Silicon Manufacturer |
Renesas |
| Kit Application Type |
Power Management - Voltage Regulator |
| Kit Contents |
Evaluation Board ISL85415FRZ |
| Automotive Qualification Standard |
- |
| Silicon Core Number |
ISL85415FRZ |
| Application Sub Type |
Synchronous Buck Regulator |
| Product Range |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
RENESAS |
| Part Number |
ISL85415EVAL1Z |
| Quantity |
Each |
