Product Overview

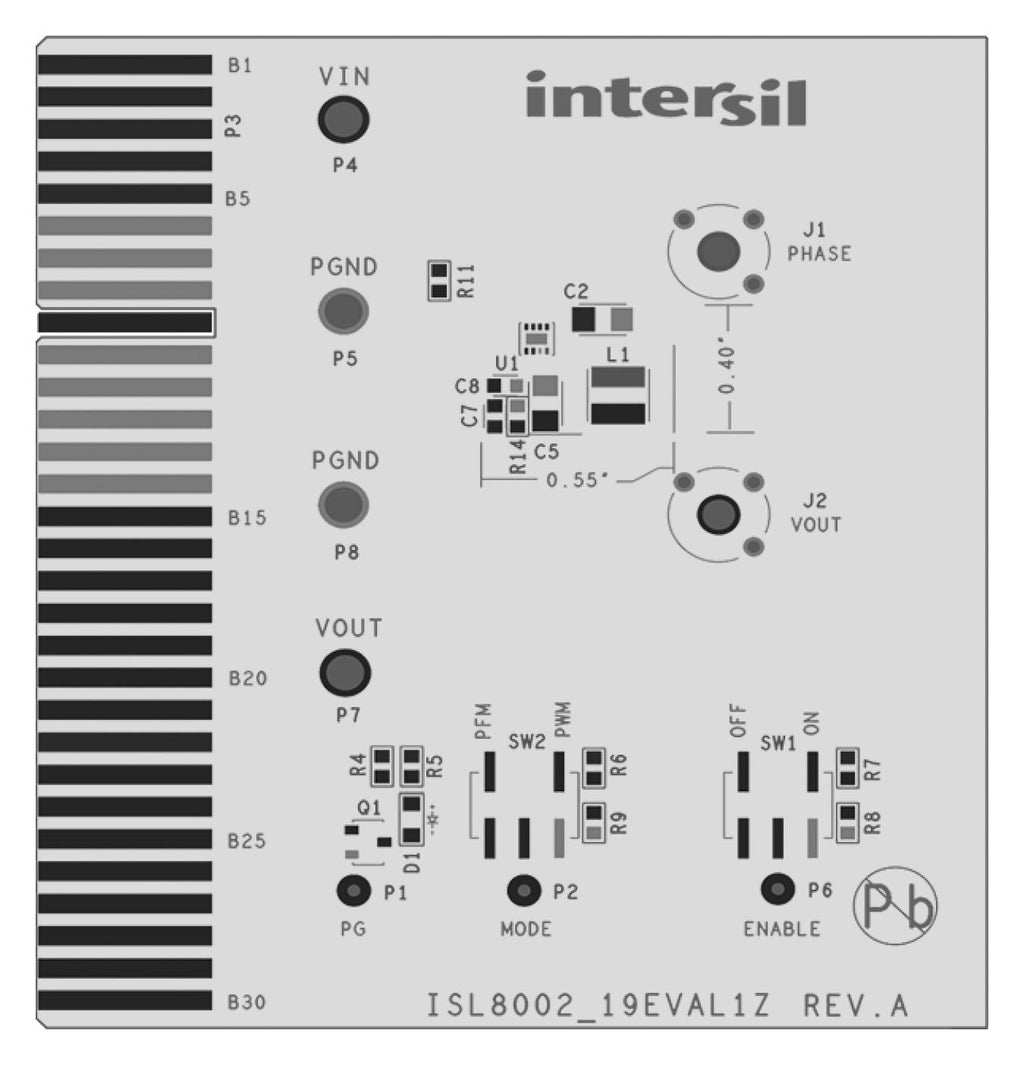

ISL8002EVAL1Z is a high-efficiency sync buck regulator evaluation board intended for use by individuals with requirements for point-of-load applications sourcing from 2.7V to 5.5V. The ISL8002EVAL1Z evaluation board is used to demonstrate the performance of the ISL8002 low quiescent current, high-efficiency, synchronous buck regulator. The ISL8002 is offered in a 2mm x 2mm 8 lead μTDFN package with 1mm maximum height. The complete area that the converter occupies can be as small as 0.10in².
- 2A IOUT (max)
- 0.6 to 5.5V VOUT range
- High efficiency synchronous buck regulator with up to 95% efficiency
- 0.8% reference accuracy over-temperature/load/line
- Start-up with pre-biased output
- Internal soft-start - 1ms
- Soft-stop output discharge during disable
- 1MHz default frequency
- Negative OC protection
Product details
| Silicon Manufacturer |
Renesas |
| Kit Application Type |
Power Management - Voltage Regulator |
| Kit Contents |
Evaluation Board ISL8002 |
| Automotive Qualification Standard |
- |
| Silicon Core Number |
ISL8002 |
| Application Sub Type |
Synchronous Buck Regulator |
| Product Range |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
RENESAS |
| Part Number |
ISL8002EVAL1Z |
| Quantity |
Each |
