Product Overview

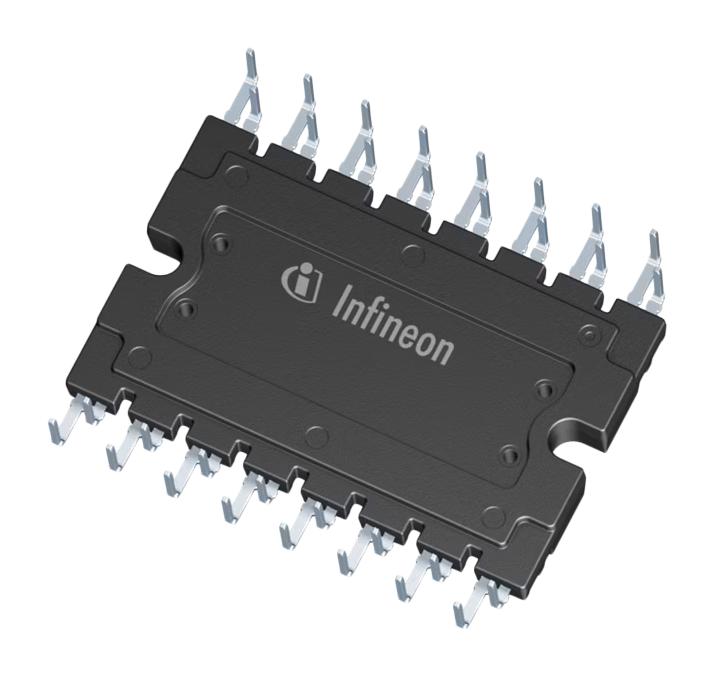

INFINEON AMF12S36LB2ZXKMA1 Silicon Carbide MOSFET, Full Bridge, Quad N Channel, 44 A, 1.2 kV, 0.0508 ohm, DIP
Product details
| MOSFET Module Configuration |
Full Bridge |
| Continuous Drain Current Id |
44A |
| Drain Source On State Resistance |
0.0508ohm |
| No. of Pins |
32Pins |
| Gate Source Threshold Voltage Max |
5.1V |
| Operating Temperature Max |
175°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Channel Type |
Quad N Channel |
| Drain Source Voltage Vds |
1.2kV |
| Transistor Case Style |
DIP |
| Rds(on) Test Voltage |
18V |
| Power Dissipation |
166W |
| Product Range |
CIPOS Prime Series |
Other details
| Brand |
INFINEON |
| Part Number |
AMF12S36LB2ZXKMA1 |
| Quantity |
Each |
| Technical Data Sheet (895.03KB) EN |
View or download |
