Product Overview

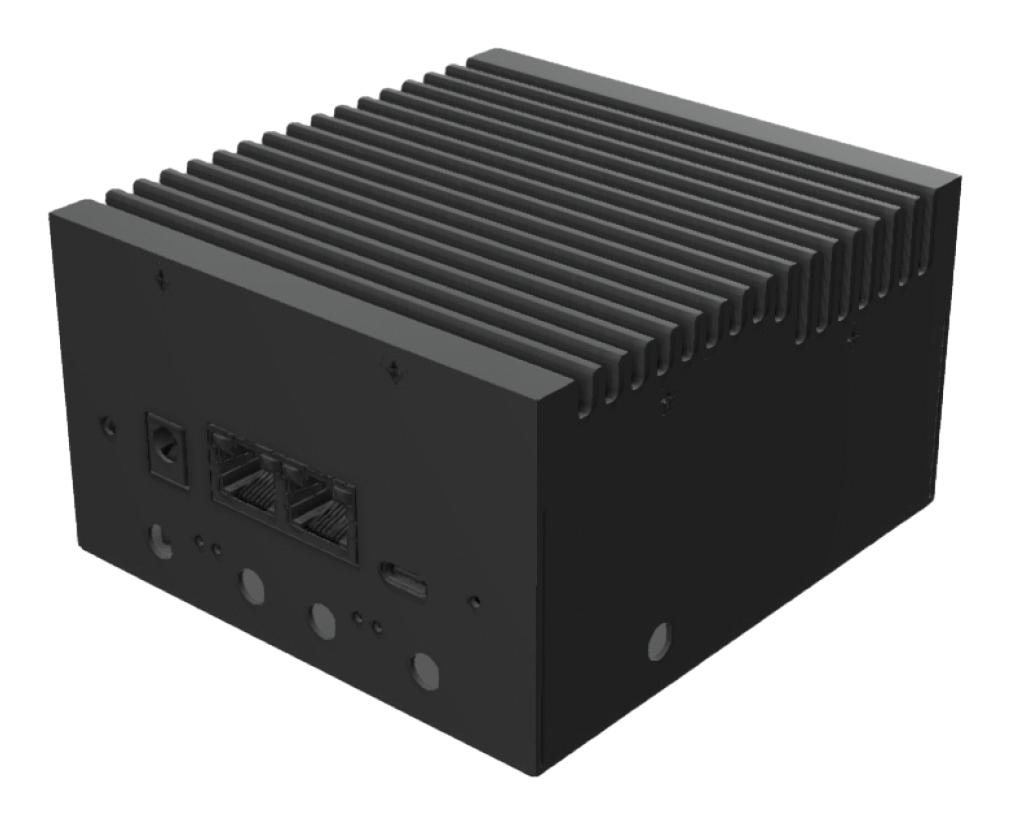

GW3102-1 is a SBC enclosure for VeniceFLEX GW8200 series SBC. It is made of electro-galvanized sheet steel with a sleek black texture coating. It has been designed for optimum thermal performance and allows compliance with CE certification standards for EMI, ESD, Burst and Surge protection. The top of the enclosure is designed to act as a high-performance heatsink for optimal passive cooling of VeniceFLEX SBC.
- Finned AL6063 aluminium black anodized heatsink and thermal protection for CE-compliance
- Pre-indented holes for optional GW10092 DIN rail clip
- Antenna holes provided for mounting SMA/RPSMA RF connectors
- Maintains access to ports for Ethernet, power, USB and LED indicators
- Operating temperature range from -40°C to +85°C
- Antenna mounting holes with removable plugs
Product details
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
GATEWORKS |
| Part Number |
GW3102-1 |
| Quantity |
Each |
| Technical Data Sheet (401.21KB) EN |
View or download |
