Product Overview

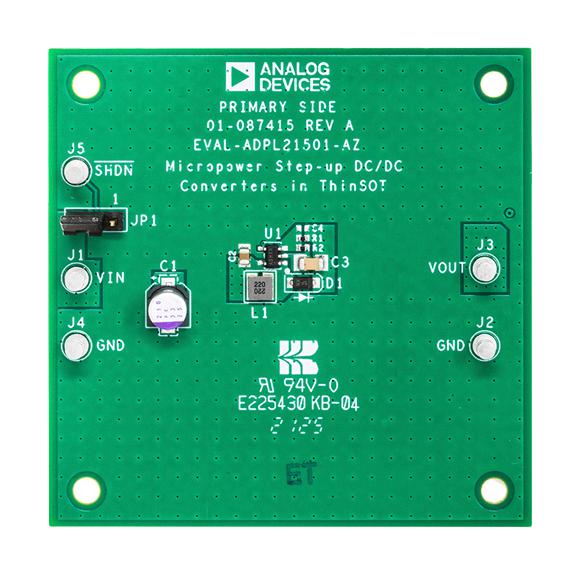

EVAL-ADPL21501-AZ is an evaluation board that features the ADPL21501, a micropower step-up DC/DC converter in a Thin SOT™ package. The ADPL21501 is designed for higher power systems with a 100mA current limit. A current-limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current. The ADPL21501’s low off-time of 400ns permits the use of tiny, low-profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications. The EVAL-ADPL21501-AZ evaluation board features an application circuit with a 30V output voltage, operating within an input voltage range of 1V to 6V and a load current of 500µA.
- Resistor programmable output voltage
- Features a current-limited, fixed off-time control scheme
- Internal compensation and soft-start
- Proven PCB layout
- Fully assembled and tested
Product details
| Silicon Manufacturer |
Analog Devices |
| Kit Application Type |
Power Management - Voltage Regulator |
| Kit Contents |
Evaluation Board ADPL21501IS5#TRPBF |
| Automotive Qualification Standard |
- |
| Silicon Core Number |
ADPL21501IS5#TRPBF |
| Application Sub Type |
Micropower Step Up DC / DC Converter |
| Product Range |
- |
| SVHC |
No SVHC (04-Feb-2026) |
