Product Overview

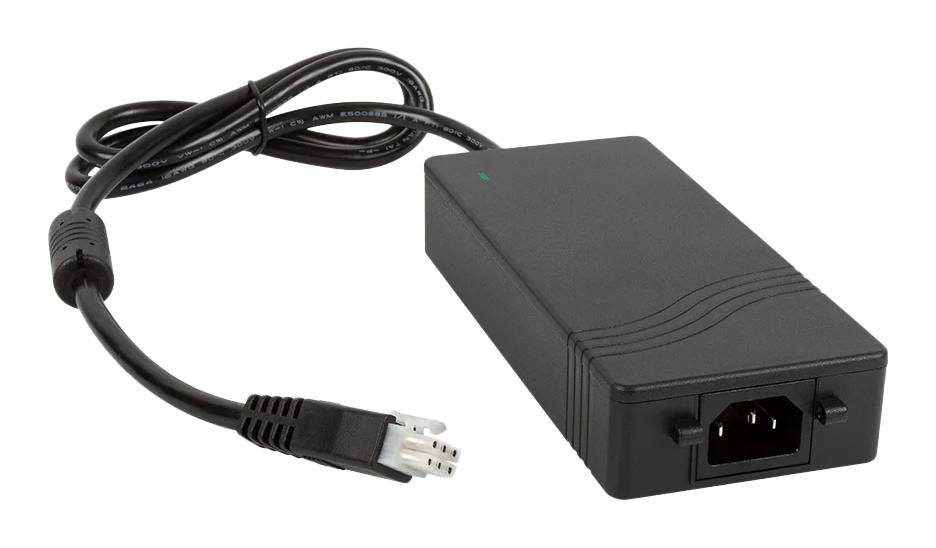

APM240PS24 is an APM240 series compact GaN based external desktop adapter designed for global medical, home healthcare, and ITE safety standards. Additionally, it conforms to the latest energy efficiency level VI (level VII ready) standards, featuring high active mode efficiency and extremely low no-load power consumption, improving reliability. APM240's gasketed design and reinforced isolation enhance safety in medical devices and home healthcare equipment. It is ideal for a wide range of industrial technology and BF-rated medical applications.
- Universal, single phase input voltage range from 80 to 264V AC
- Output voltage of 24V DC, output current of 10A
- 240W output power, 200mV ripple & noise, 93% efficiency
- Low patient leakage currents
- 2 x MOPP isolation, Class B conducted & radiated emissions
- Less than 0.15W standby power
- LED power ON status indicator
- Operating temperature range from -30 to 60°C, 3 year warranty
- IP22 ingress protection, 168 x 73 x 31.5mm (6.61” x 2.87” x 1.24”) size
- Class I construction with C14 AC inlet
Product details
| Power Supply Applications |
ITE, Industrial & Medical |
| Output Power Max |
240W |
| Output Current - Output 1 |
10A |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
80V AC to 264V AC |
| Plug Type |
IEC 60320 C14 |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
24V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Product Range |
APM240 Series |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
XP POWER |
| Part Number |
APM240PS24 |
| Quantity |
Each |
| Technical Data Sheet (950.16KB) EN |
View or download |
