Product Overview

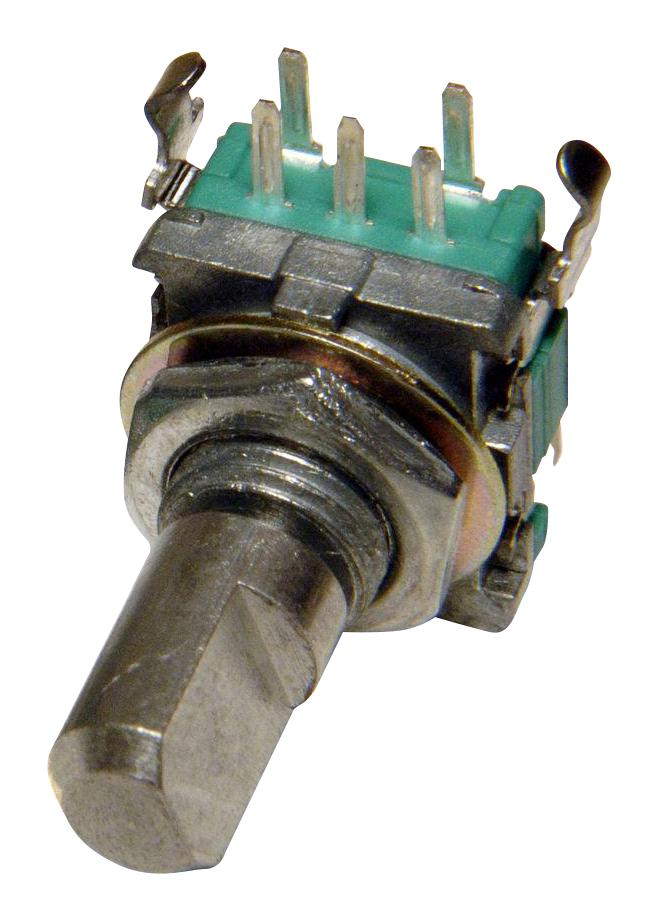

TT ELECTRONICS EN11-HSM1AF20 Rotary Encoder, Mechanical, Incremental, 20 PPR, 20 Detents, Vertical, With Push Switch
Product details
| Encoder Technology |
Mechanical |
| Encoder Resolution |
20PPR |
| Orientation |
Vertical |
| Encoder Output |
Gray Code |
| Product Range |
EN11 Series |
| Rotational Life Cycles |
30000 |
| Shaft Type |
D Type Flatted End |
| Shaft Diameter |
6mm |
| Supply Voltage Max |
5VDC |
| Operating Temperature Max |
70°C |
| Termination |
PC Pin |
| Encoder Type |
Incremental |
| No. of Detents |
20 Detents |
| Push Switch |
With Push Switch |
| Encoder Mounting |
Bushing Mount, Through Hole |
| Rotational Speed Max |
100rpm |
| No. of Channels |
2Channels |
| Shaft Length |
20mm |
| Supply Voltage Min |
- |
| Operating Temperature Min |
-10°C |
| IP Rating |
- |
| SVHC |
No SVHC (19-Jan-2021) |
Other details
| Brand |
TT ELECTRONICS |
| Part Number |
EN11-HSM1AF20 |
| Quantity |
Each |
| Technical Data Sheet (959.38KB) EN |
View or download |
