Product Overview

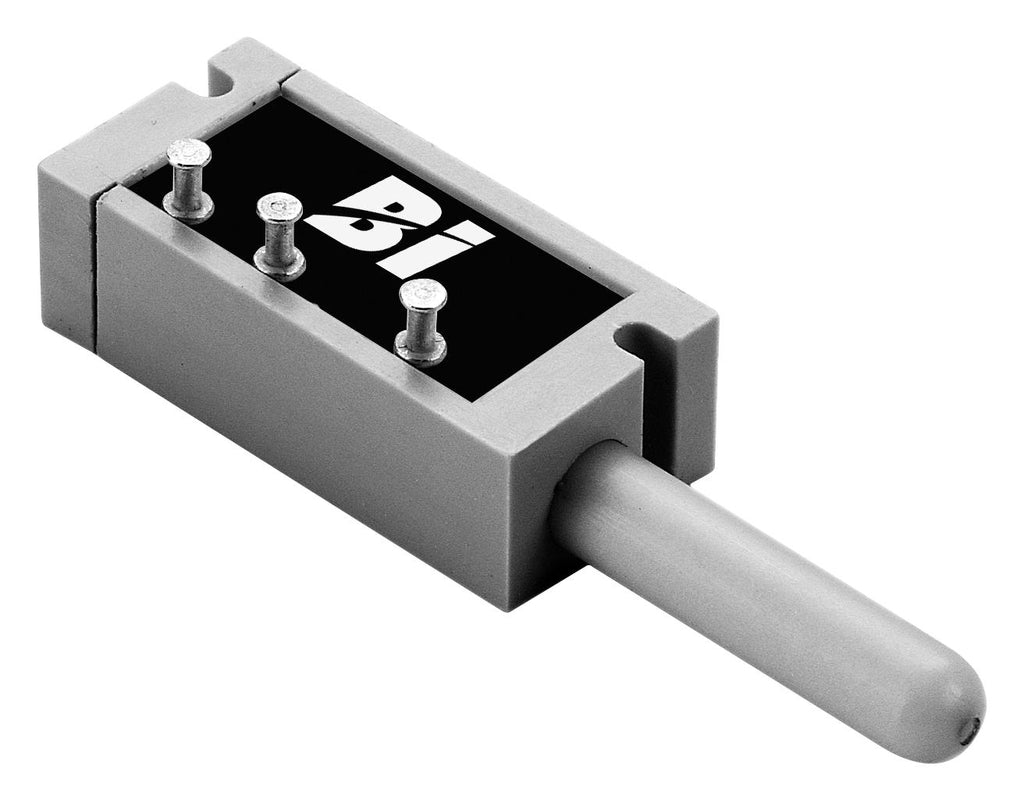

TT ELECTRONICS 404R10KL1.0 Linear Motion Potentiometer, 10 kohm, ± 10%, 250 mW, 12.7 mm, 404 Series, Turret
Product details
| Track Resistance |
10kohm |
| Power Rating |
250mW |
| Product Range |
404 Series |
| Resistor Technology |
Conductive Plastic |
| Product Length |
26.92mm |
| Product Height |
8.51mm |
| Operating Temperature Max |
125°C |
| Resistance Tolerance |
± 10% |
| Length of Travel |
12.7mm |
| Potentiometer Terminals |
Turret |
| Temperature Coefficient |
-800ppm/°C |
| Product Width |
12.7mm |
| Operating Temperature Min |
-55°C |
| SVHC |
No SVHC (19-Jan-2021) |
Other details
| Brand |
TT ELECTRONICS |
| Part Number |
404R10KL1.0 |
| Quantity |
Each |
| Technical Data Sheet (360.32KB) EN |
View or download |
