Product Overview

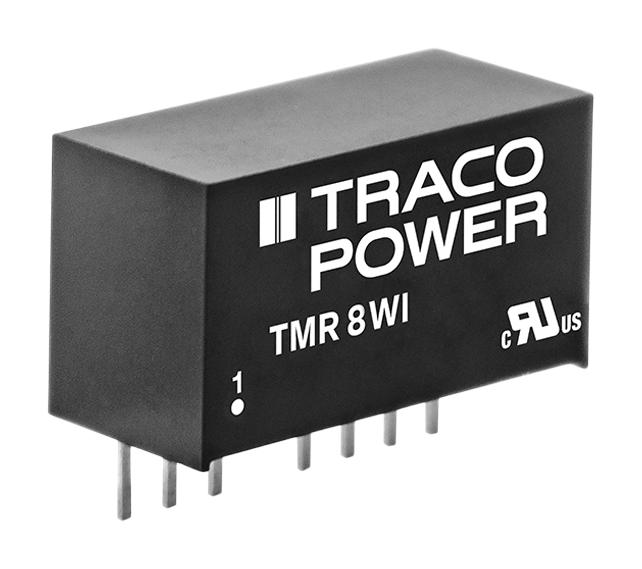

TRACO POWER TMR 8-1215WI Isolated Through Hole DC/DC Converter, ITE & Industrial, 4:1, 8 W, 1 Output, 24 V
Product details
| Power Supply Applications |
ITE & Industrial |
| Output Power Max |
8W |
| Output Voltage - Output 1 |
24V |
| Output Voltage - Output 2 |
-15V |
| Output Regulation |
Regulated |
| Input Voltage DC Nom |
12V |
| Width |
12mm |
| Depth |
21.8mm |
| Input Voltage DC Max |
18V |
| SVHC |
Lead (04-Feb-2026) |
| Input Ratio |
4:1 |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
335mA |
| Output Current - Output 2 |
265mA |
| Isolation Voltage |
1.5kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
9.6mm |
| Input Voltage DC Min |
4.5V |
| Product Range |
TMR 8WI Series |
Other details
| Brand |
TRACO POWER |
| Part Number |
TMR 8-1215WI |
| Quantity |
Each |
| Technical Data Sheet (847.94KB) EN |
View or download |
