Product Overview

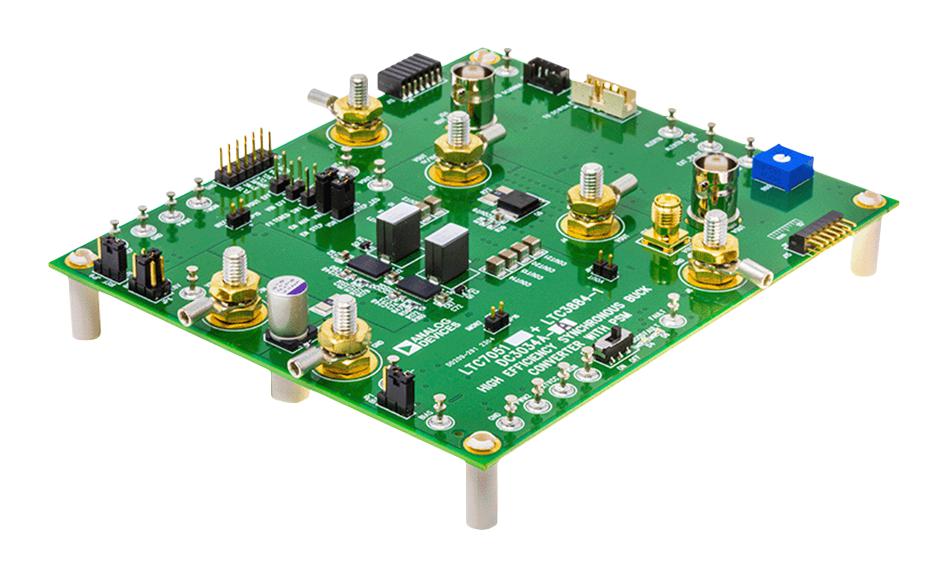

DC3034A-A is an evaluation board to evaluate the LTC3884-1, 2-phase, single output synchronous buck converter with power system management. The demo board features theLTC3884-1 controller paired with the LTC7051 smart power stage to provide a 2-phase buck converter solution. The LTC3884-1 is a dual output PolyPhase step-down controller with digital power system management. The LTC7051 is a monolithic smart power stage that integrates high-speed drivers with low resistance half-bridge power switches plus comprehensive monitoring and protection circuitry in an electrically and thermally optimized package.
- Input voltage range from 7V to 14V
- Output voltage (VOUT): 1V to 1.8V, 1V (default)
- 100A max output current
- 2 number of phases
- PMBus compliant with digital power system management
Product details
| Silicon Manufacturer |
Analog Devices |
| Kit Application Type |
Power Management |
| Kit Contents |
Evaluation Board LTC3884ERHE-1#PBF, LTC7051AV#PBF |
| Automotive Qualification Standard |
AEC-Q100 |
| Silicon Core Number |
LTC3884ERHE-1#PBF, LTC7051AV#PBF |
| Application Sub Type |
Synchronous Buck Converter |
| Product Range |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
DC3034A-A |
| Quantity |
Each |
