Product Overview

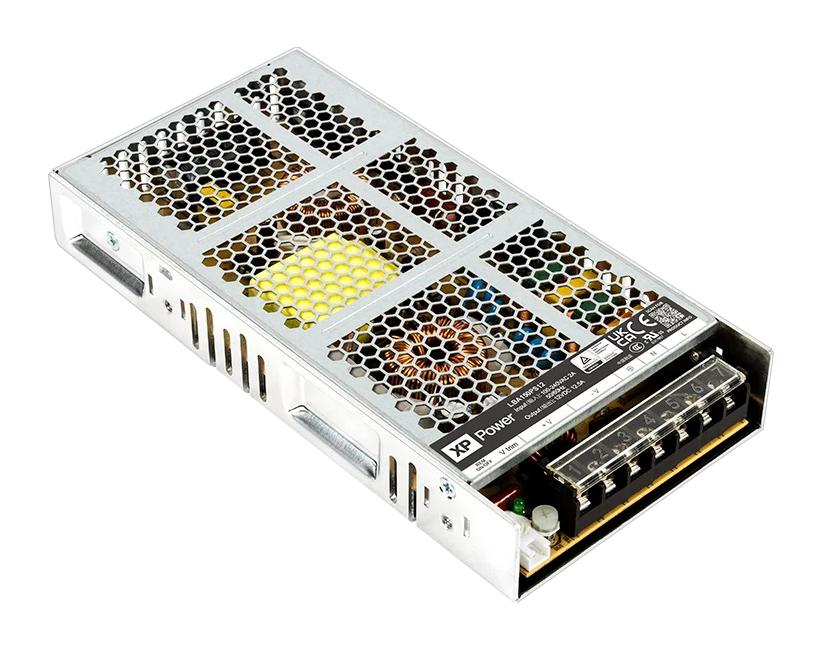

LBA150PS48 is a LBA150 series compact, convection-cooled 150W AC-DC power supply designed to deliver quiet, consistent performance across a wide range of industrial technology applications. With a wide input range, active power factor correction, regulated single output voltage and output voltage adjustment, the LBA150 series provides engineers with a versatile and robust power platform suitable for demanding industrial environments. Featuring Class B conducted and radiated emissions, worldwide ITE safety approvals, wide temperature range, compact footprint, a power “ON” LED, remote ON/OFF and an integrated connector cover, the LBA150 is designed for easy integration into applications including auxiliary power units, security and surveillance systems, industrial automation, lighting control, smart home and building control equipment.
- Universal, single phase input voltage range from 90 to 264V AC
- Nominal output voltage of 48V DC, output current of 3.2A
- 154W power, 250mVpk to pk ripple & noise, 89.5% efficiency
- Short circuit, overvoltage & overload protection
- Output voltage trim
- 1000μF maximum capacitive load
- Operating temperature range from -30°C to +70°C, 3 year warranty
- 199.0 x 99.0 x 30.0mm (7.83” x 3.89” x 1.18”) size
Product details
| Power Supply Applications |
ITE, Industrial, LED Lighting |
| Output Power Max |
154W |
| Output Current - Output 1 |
3.2A |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Output Current - Output 4 |
- |
| Power Supply Output Type |
Fixed |
| SVHC |
No SVHC (04-Feb-2026) |
| No. of Outputs |
1Outputs |
| Output Voltage - Output 1 |
48V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Input Voltage VAC |
90V AC to 264V AC |
| Product Range |
LBA150 Series |
Other details
| Brand |
XP POWER |
| Part Number |
LBA150PS48 |
| Quantity |
Each |
| Technical Data Sheet (60.00B) EN |
View or download |
