Product Overview

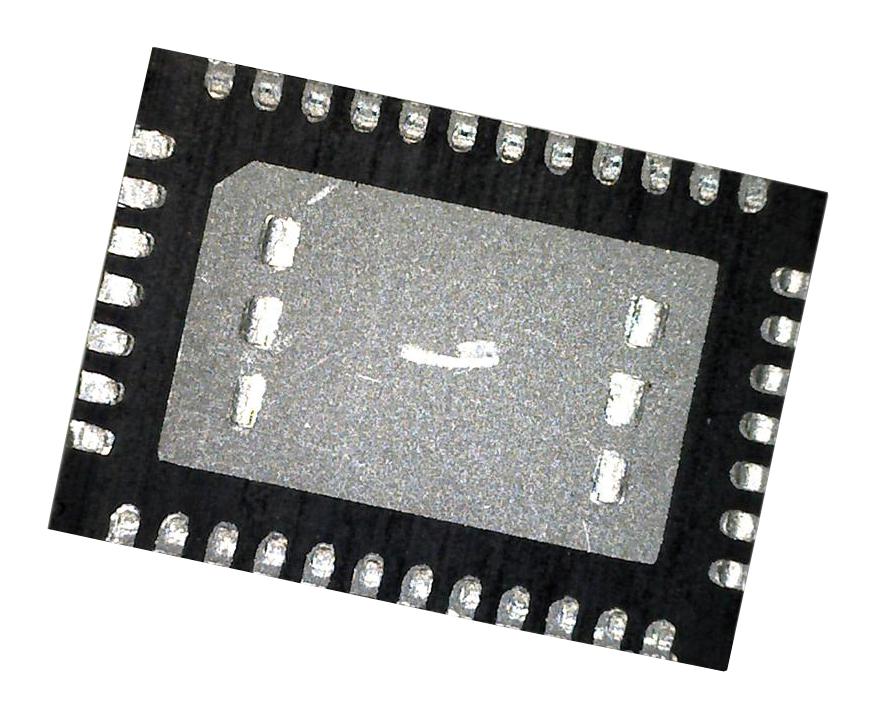

ANALOG DEVICES TMC2211ATU+ Motor Driver, H-Bridge, Stepper Motor, 1 Output, 4.5 to 65V Supply, TQFN-EP-38, -40 to 125 °C
Product details
| IC Type |
H-Bridge Motor Driver |
| No. of Outputs |
1Outputs |
| Output Voltage |
- |
| No. of Pins |
38Pins |
| Supply Voltage Max |
65V |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Motor Type |
Stepper |
| Output Current |
- |
| IC Case / Package |
TQFN-EP |
| Supply Voltage Min |
4.5V |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
TMC2211ATU+ |
| Quantity |
Each |
| Technical Data Sheet (810.61KB) EN |
View or download |
