Product Overview

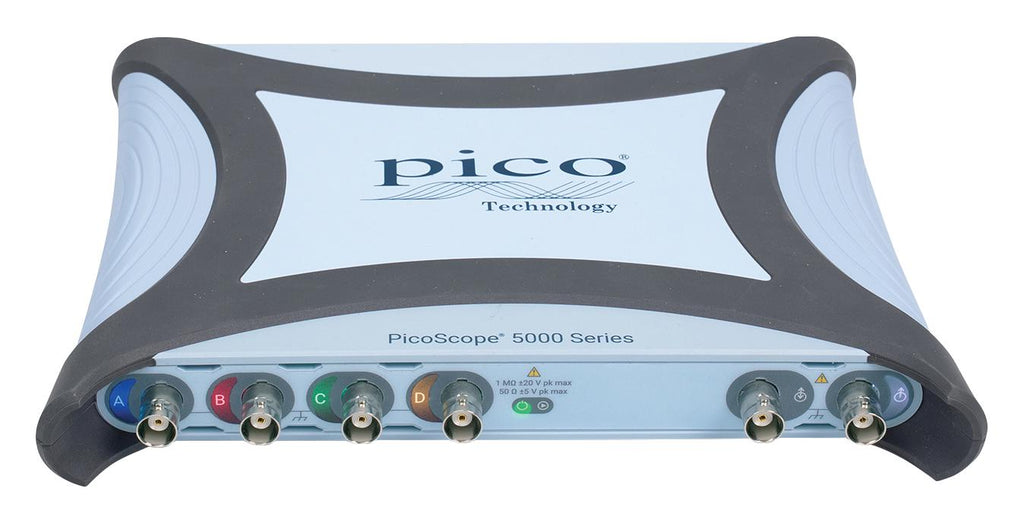

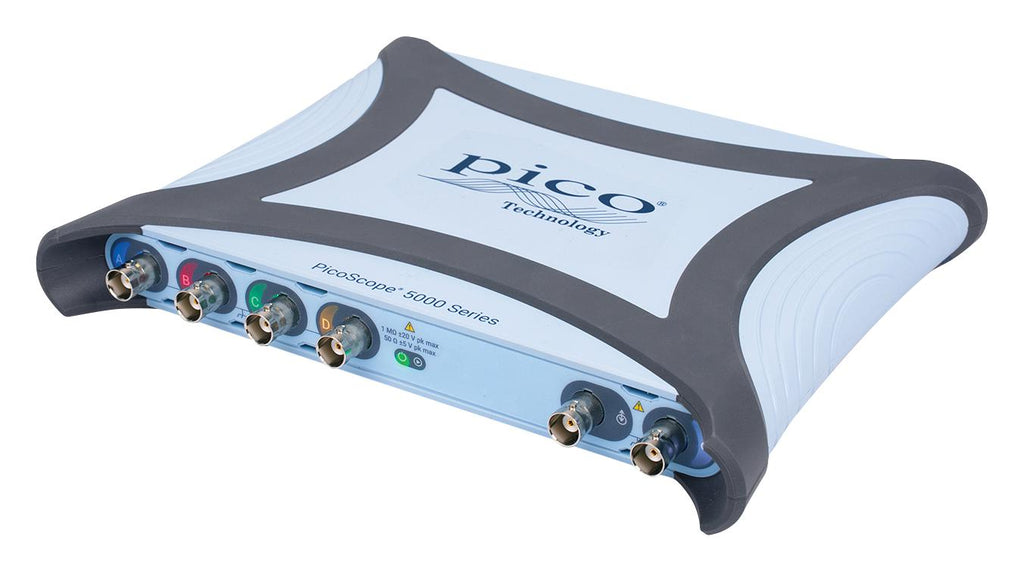

PICOSCOPE 5463E is a PicoScope 5000E series, 4-channel, 16bit USB oscilloscope. It is the first four-channel oscilloscope in class to combine 16bit resolution with a low noise floor and high dynamic range, enabling accurate measurement of low-level signals. Equipped with high-performance ADCs on all four channels, it can capture subtle millivolt-level transitions, power supply ripple, distortion, and other low-amplitude signals with exceptional precision, making it ideal for detailed analogue system analysis and testing.
- 4 analogue channel, 100MHz bandwidth
- 16bit mode, 2.5GS/s sampling, 1GS capture memory, 3.5ns rise time
- 22µV RMS noise floor at 20MHz enables accurate low-level signal measurement
- > 73dB SFDR and exceptional bandwidth flatness to trust every measurement, from DC to full bandwidth
- Advanced triggering includes edge, pulse width, runt, logic and interval triggers
- Decodes I²C, SPI, UART, CAN, LIN, FlexRay, USB and many other protocols
- 5 year warranty
- Dimension is 221 x 173 x 30mm (8.70in x 6.81in x 1.18in)
Product details
| Product Range |
PicoScope 5000E Series |
| Bandwidth |
100MHz |
| Display Memory Depth |
1 Gpts |
| Kit Contents |
5463E Osc, TA532/TA534 USB-C to C/USB-A to C Cable, PS017 Power Supply, TA537 Adapter, User's Guide |
| Plug Type |
USB |
| Scope Channels |
4 Analogue |
| Sampling Rate |
2.5GSPS |
| Calculated Rise Time |
3.5ns |
| Manufacturer Warranty |
5 Years |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
PICO TECHNOLOGY |
| Part Number |
PICOSCOPE 5463E |
| Quantity |
Each |
| Technical Data Sheet (7.46MB) EN |
View or download |
