Product Overview

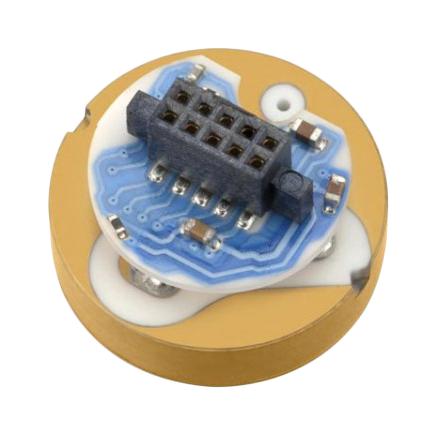

ENDRESS+HAUSER USC30-AAD1PDBBAASAA+RBSASPSTS1TATSTT Pressure Transmitter, Gauge, -1 bar, 10 bar, 2x5 Pin Female Header Connector
Product details
| Pressure Type |
Gauge |
| Operating Pressure Min |
-1bar |
| Pressure Port Size |
- |
| Supply Voltage Min |
2.9VDC |
| Media Type |
Liquid, Gas |
| Sensor Output Type |
Digital, Ratiometric |
| Operating Temperature Min |
-40°C |
| Product Range |
Ceracore USC30 Series |
| Pressure Port Type |
- |
| Operating Pressure Max |
10bar |
| Transducer Connection / Termination |
2x5 Pin Female Header Connector |
| Supply Voltage Max |
5.5VDC |
| Output Interface |
SPI, UART |
| Housing Material |
- |
| Operating Temperature Max |
125°C |
Other details
| Brand |
ENDRESS+HAUSER |
| Part Number |
USC30-AAD1PDBBAASAA+RBSASPSTS1TATSTT |
| Quantity |
Each |
| Technical Data Sheet (607.82KB) EN |
View or download |
