Product Overview

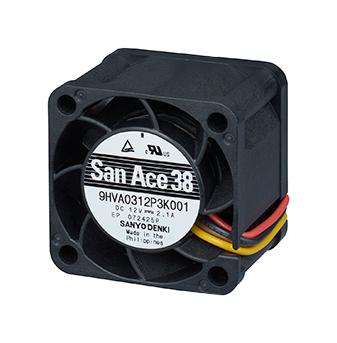

SANYO DENKI 9HVA0312P3G001 DC Axial Fan, 12 V, Square, 38 mm, 28 mm, Precision Ball Bearing, 25.1 CFM
Product details
| Supply Voltage VDC |
12V |
| Fan Frame Size |
38mm |
| Bearing Type |
Precision Ball Bearing |
| Noise Rating |
64dBA |
| Rated Speed |
30000rpm |
| Current Rating |
1.1A |
| Air Flow - m3/min |
0.71m³/min |
| Product Range |
San Ace 38 9HVA Series |
| Fan Frame Type |
Square |
| External Depth |
28mm |
| Air Flow - CFM |
25.1CFM |
| Power Rating |
13.2W |
| Power Connection Type |
4 Lead Wires, Pulse Sensor, PWM Control |
| IP Rating |
- |
| Static Pressure |
1300Pa |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
SANYO DENKI |
| Part Number |
9HVA0312P3G001 |
| Quantity |
Each |
| Technical Data Sheet (125.23KB) EN |
View or download |
