Product Overview

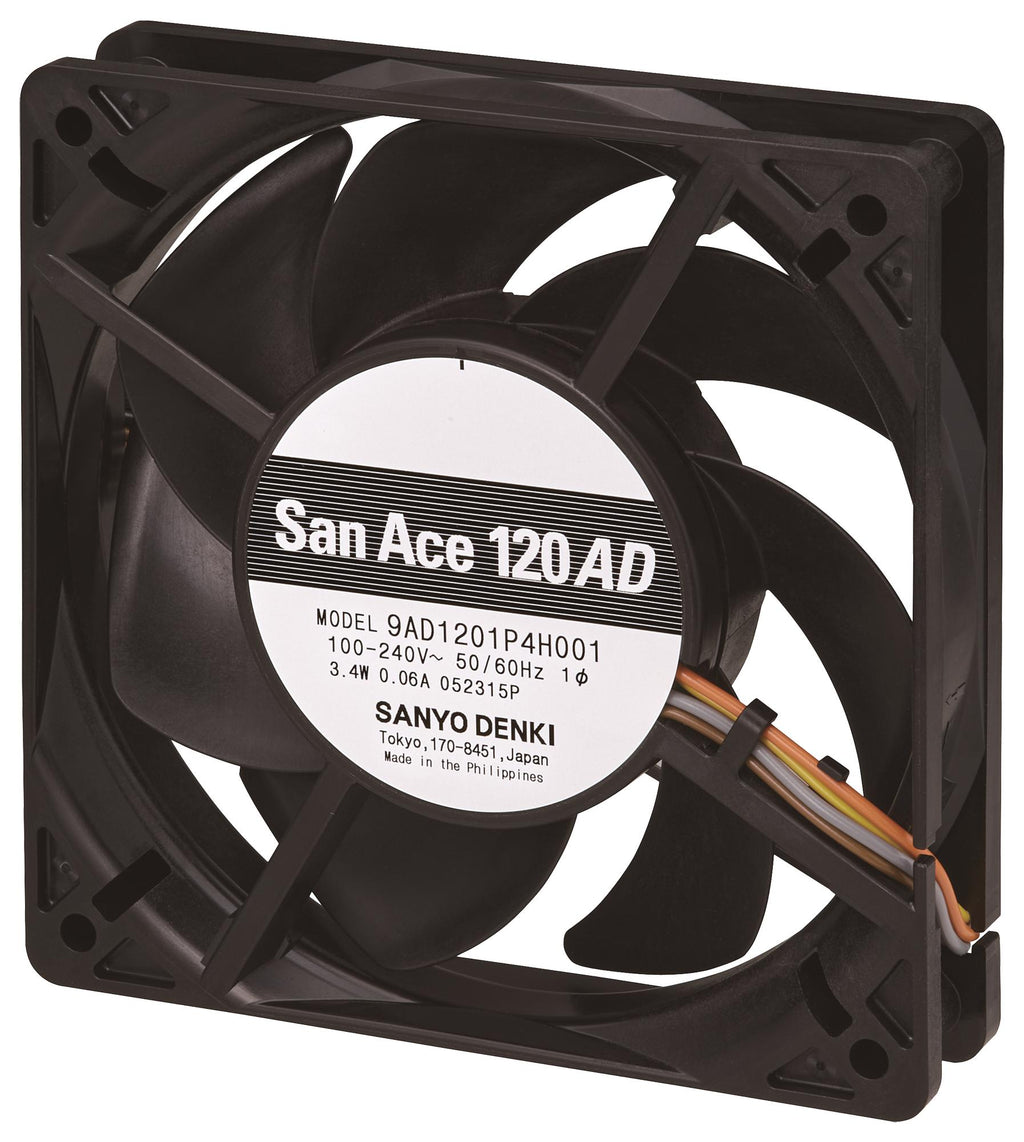

SANYO DENKI 9AD1201H4H001 AC Axial Fan, 100V to 240V, Square, 120 mm, 25 mm, Precision Ball Bearing, 83 CFM
Product details
| Nominal Rated Voltage AC |
100V to 240V |
| Fan Frame Size |
120mm |
| Bearing Type |
Precision Ball Bearing |
| Noise Rating |
40dBA |
| Rated Speed |
3000rpm |
| Current Rating |
60mA |
| Air Flow - m3/min |
2.35m³/min |
| Operating Voltage Max |
264V |
| Product Range |
San Ace 120AD 9AD Series |
| Fan Frame Type |
Square |
| External Depth |
25mm |
| Air Flow - CFM |
83CFM |
| Power Rating |
3.4W |
| Power Connection Type |
5 Lead Wires, Sensor Output |
| IP Rating |
- |
| Operating Voltage Min |
90V |
| Static Pressure |
62Pa |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
SANYO DENKI |
| Part Number |
9AD1201H4H001 |
| Quantity |
Each |
| Technical Data Sheet (1.21MB) EN |
View or download |
