Product Overview

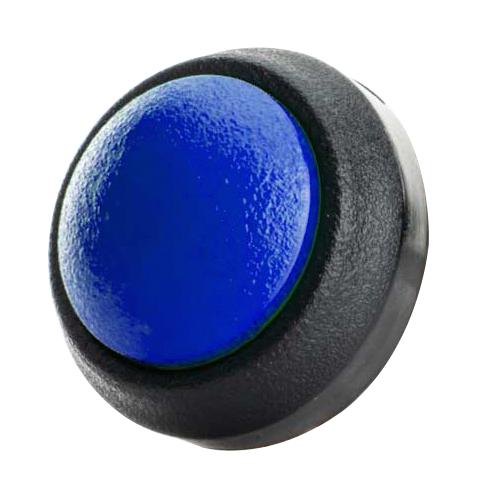

ITW SWITCHES 48-2-RB-N-BL-S Industrial Pushbutton Switch, Snap-Fit, 48-EM Series, 13.6 mm, SPST-NO-DB, Maintained, Round Domed
Product details
| Product Range |
48-EM Series |
| Contact Configuration |
SPST-NO-DB |
| Pushbutton Actuator Style |
Round Domed |
| Contact Current AC Max |
- |
| Contact Current DC Max |
250mA |
| IP Rating |
IP67 |
| Switch Terminals |
Solder Lug |
| Panel Cutout (H x W) |
- |
| Panel Cutout Diameter |
13.6mm |
| Switch Operation |
Maintained |
| Actuator / Cap Colour |
Blue |
| Contact Voltage VAC |
- |
| Contact Voltage VDC |
48V |
| Switch Mounting |
Panel Mount |
| Illumination Colour |
Non Illuminated |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
ITW SWITCHES |
| Part Number |
48-2-RB-N-BL-S |
| Quantity |
Each |
| Technical Data Sheet (71.00B) EN |
View or download |
