Product Overview

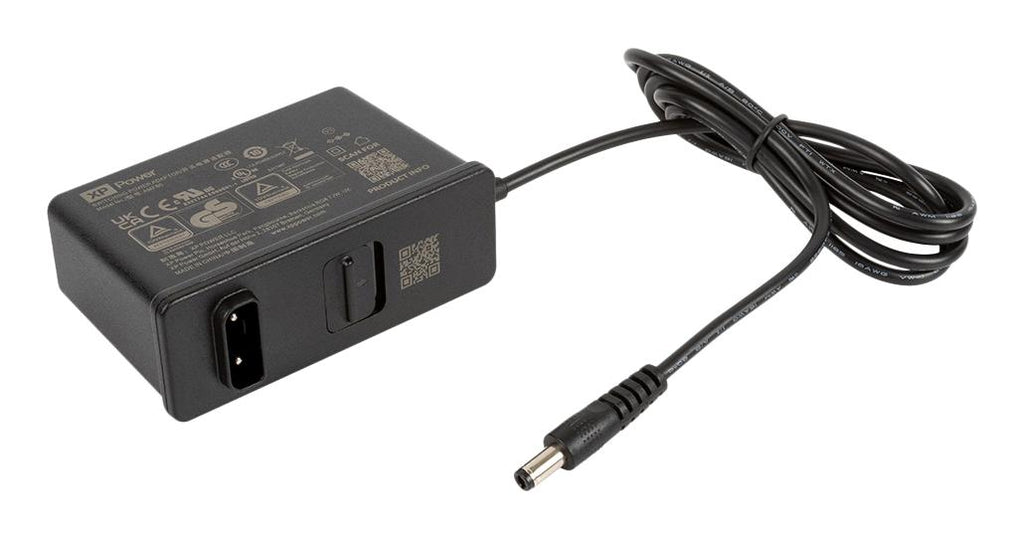

AMF60US19 is an AMF60 series AC-DC power supply. This 60W external wall mount adapter adheres to global medical, home healthcare, and ITE safety standards. Additionally, it conforms to the latest energy efficiency level VI (level VII ready) standards, featuring high active mode efficiency and extremely low no-load power consumption, improving reliability. Its class II construction, gasketed design, and reinforced isolation enhance safety in medical devices and home healthcare equipment. The low patient leakage currents, 2 x MOPP isolation, compact design, wide 80-264V AC input for universal use, and high efficiency make the AMF60 ideal for a wide range of industrial technology and BF-rated medical applications.
- Energy efficiency level VI (level VII ready) and EU2019/1782
- IP42 ingress protection
- <0.15W standby power
- Class B conducted and radiated emissions
- 0 to +60°C operation, 5% output voltage accuracy
- 3 year warranty
- Dimension: 90.5 x 58.5 x 33.5mm (3.56” x 2.30” x 1.32”)
- 19V DC output voltage
- 3.15A output current
- 89% efficiency, 5% output voltage accuracy
Product details
| Power Supply Applications |
ITE, Industrial & Medical |
| Output Power Max |
60W |
| Output Current - Output 1 |
3.15A |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Product Range |
AMF60 Series |
| SVHC |
No SVHC (04-Feb-2026) |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
19V |
| Output Voltage - Output 2 |
- |
| Output Connector |
Barrel Jack Center Positive 5.5mm x 2.5mm x 11mm |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
80V AC to 264V AC |
| Plug Type |
Mains Plug Sold Separately |
Other details
| Brand |
XP POWER |
| Part Number |
AMF60US19 |
| Quantity |
Each |
| Technical Data Sheet (1.28MB) EN |
View or download |
