Product Overview
STMICROELECTRONICS STM32H735IGK3 ARM MCU, STM32 Family STM32H7 Series Microcontrollers, ARM Cortex-M7F, 32 bit, 550 MHz, 1 MB
Product details
| Product Range |
STM32 Family STM32H7 Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
1MB |
| IC Case / Package |
UFBGA |
| Interfaces |
FDCAN, Ethernet, HDMI, I2C, I2S, LPUART, PDM, SAI, SDMMC, SPI, SPDIFRX, SWPMI, UART, USART, USB |
| ADC Channels |
55Channels |
| Supply Voltage Min |
1.62V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
STM32H7 |
| SVHC |
No SVHC (04-Feb-2026) |
| Device Core |
ARM Cortex-M7F |
| Operating Frequency Max |
550MHz |
| No. of Pins |
176Pins |
| No. of I/O's |
128I/O's |
| RAM Memory Size |
176KB |
| ADC Resolution |
12Bit, 16Bit |
| Supply Voltage Max |
3.6V |
| Operating Temperature Max |
125°C |
| MCU Family |
STM32 |
| Qualification |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32H735IGK3 |
| Quantity |
Each |
| Technical Data Sheet (3.56MB) EN |
View or download |

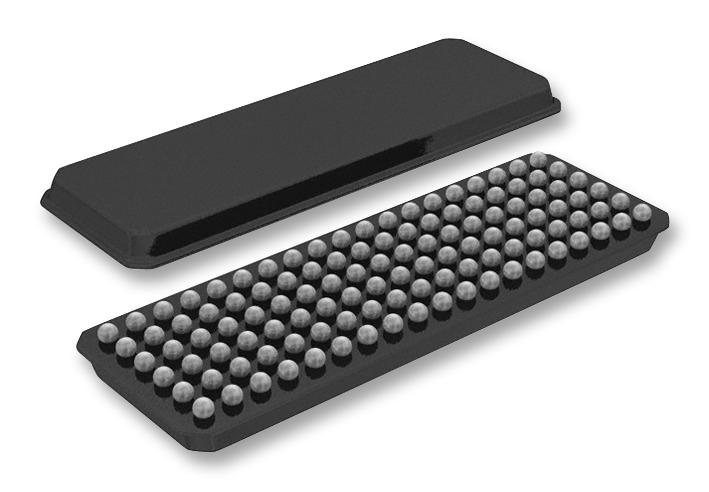

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
