Product Overview

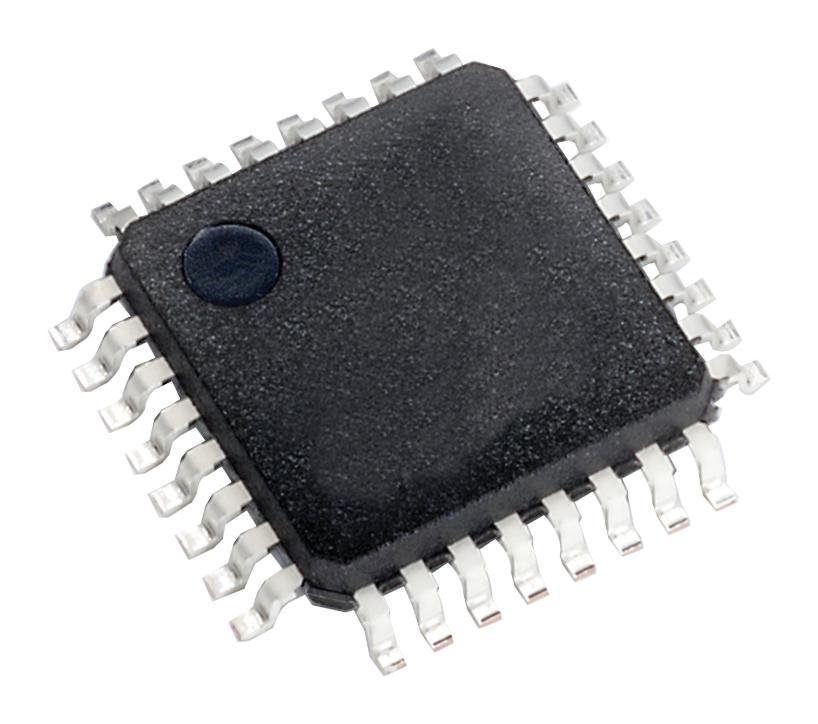

RENESAS R5F514T5AMFJ#70 32 Bit Microcontroller, RX Family, RX100 Series, RX14T Group Microcontrollers, RXv2, 32 bit
Product details
| Product Range |
RX Family, RX100 Series, RX14T Group Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
128KB |
| IC Case / Package |
LQFP |
| Interfaces |
I2C, SCI |
| ADC Channels |
10Channels |
| Supply Voltage Min |
2.7V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
RX100 |
| SVHC |
No SVHC (04-Feb-2026) |
| Device Core |
RXv2 |
| Operating Frequency Max |
48MHz |
| No. of Pins |
32Pins |
| No. of I/O's |
27I/O's |
| RAM Memory Size |
12KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
125°C |
| MCU Family |
RX |
| Qualification |
- |
Other details
