Product Overview

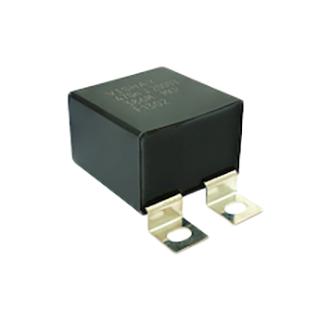

VISHAY MKP386M533100JT4 Power Film Capacitor, Metallized PP, Radial Box - Tabs, 3.3 µF, ± 5%, Snubber, Panel Mount
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
3.3µF |
| Typical Applications |
Snubber |
| Voltage(AC) |
500V |
| Humidity Rating |
- |
| Lead Spacing |
- |
| Peak Current |
1.122kA |
| ESR |
0.0035ohm |
| Product Length |
44mm |
| Product Height |
46mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - Tabs |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Panel Mount |
| Voltage(DC) |
1kV |
| Capacitor Terminals |
Solder Lug |
| dv/dt Rating |
340V/µs |
| RMS Current (Irms) |
18A |
| Product Diameter |
- |
| Product Width |
30mm |
| Ripple Current |
- |
| Product Range |
MKP386M Series |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (04-Feb-2026) |
