Product Overview

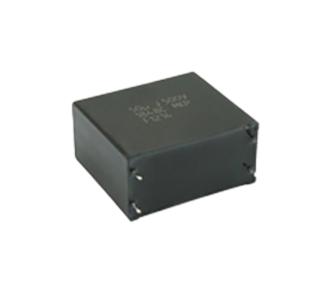

VISHAY MKP1848C66012JY5 Power Film Capacitor, Metallized PP, Radial Box - 4 Pin, 60 µF, ± 5%, DC Link, Through Hole
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
60µF |
| Typical Applications |
DC Link |
| Voltage(AC) |
- |
| Humidity Rating |
GRADE II (Test Condition A) |
| Lead Spacing |
52.5mm |
| Peak Current |
400A |
| ESR |
0.0025ohm |
| Product Length |
57.5mm |
| Product Height |
65mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 4 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
1.2kV |
| Capacitor Terminals |
PC Pin |
| dv/dt Rating |
20V/µs |
| RMS Current (Irms) |
40A |
| Product Diameter |
- |
| Product Width |
65.5mm |
| Ripple Current |
- |
| Product Range |
MKP1848C Series |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (04-Feb-2026) |
