Product Overview

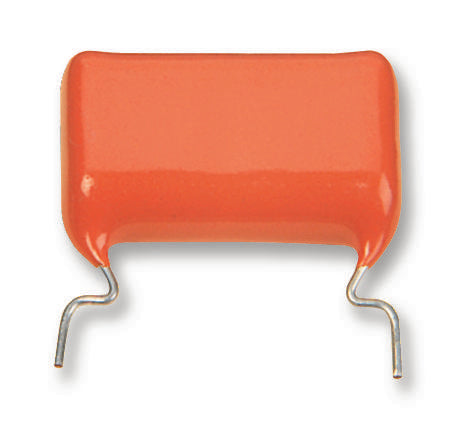

VISHAY BFC237526222 Power Film Capacitor, Metallized PP, Radial Box - 2 Pin, 2200 pF, ± 5%, High Current, Pulse
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
2200pF |
| Typical Applications |
High Current, Pulse |
| Voltage(AC) |
400V |
| Humidity Rating |
GRADE II (Test Condition A) |
| Lead Spacing |
15mm |
| Peak Current |
- |
| ESR |
- |
| Product Length |
18.5mm |
| Product Height |
14.5mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
1kV |
| Capacitor Terminals |
PC Pin |
| dv/dt Rating |
8kV/µs |
| RMS Current (Irms) |
- |
| Product Diameter |
- |
| Product Width |
5.5mm |
| Ripple Current |
- |
| Product Range |
KP/MKP 375 Series |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (04-Feb-2026) |
