Product Overview

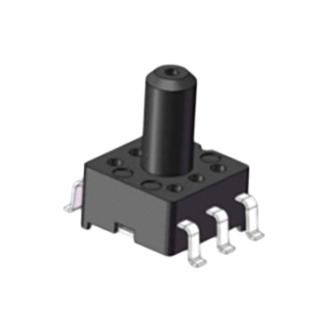

PUI AUDIO PSA071040 Pressure Sensor, Gauge, -40 kPa, 40 kPa, 4.7 V, 5.3 V, SMD, Gull Wing
Product details
| Pressure Type |
Gauge |
| Operating Pressure Max |
40kPa |
| Supply Voltage Max |
5.3V |
| No. of Pins |
6Pins |
| Accuracy |
- |
| Sensor Mounting |
Surface Mount |
| Media Type |
- |
| Operating Temperature Max |
85°C |
| Qualification |
- |
| Operating Pressure Min |
-40kPa |
| Supply Voltage Min |
4.7V |
| Sensor Case / Package |
SMD, Gull Wing |
| Sensor Output Type |
Analogue - 0mV to 135mV |
| Pressure Port Type |
Single Radial Barbless |
| Output Interface |
- |
| Operating Temperature Min |
-20°C |
| Product Range |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
PUI AUDIO |
| Part Number |
PSA071040 |
| Quantity |
Each |
| Technical Data Sheet (714.18KB) EN |
View or download |
