Product Overview

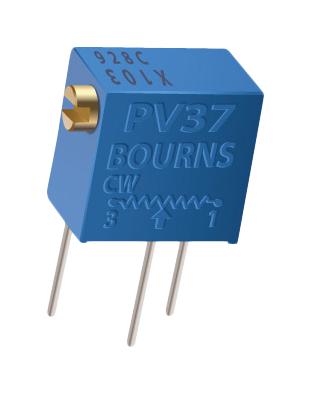

BOURNS PV37W203C01B00 Trimmer, Multi Turn, Cermet, Top Adjust, 20 kohm, Through Hole, 12 Turns
Product details
| Trimmer Type |
Multi Turn |
| Adjustment Type |
Top Adjust |
| Potentiometer Mounting |
Through Hole |
| Product Range |
PV37 Series |
| Resistance Tolerance |
± 10% |
| Trimmer Shape / Size |
Rectangular |
| Product Length |
6.71mm |
| Product Height |
7.24mm |
| Operating Temperature Max |
125°C |
| SVHC |
Lead (04-Feb-2026) |
| Element Material |
Cermet |
| Track Resistance |
20kohm |
| No. of Turns |
12Turns |
| Power Rating |
250mW |
| Temperature Coefficient |
± 150ppm/°C |
| Resistor Case / Package |
- |
| Product Width |
4.5mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
Other details
| Brand |
BOURNS |
| Part Number |
PV37W203C01B00 |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
