Product Overview

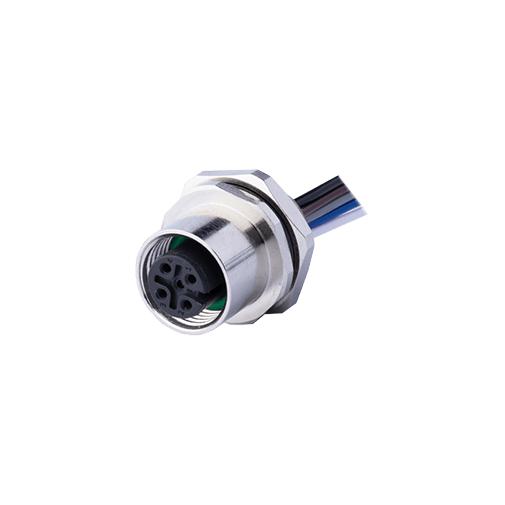

SAME SKY CDM1226-12A-FW-R16-050-67 Sensor Cable, M12 Receptacle, Free End, 12 Positions, 500 mm, 19.7 ", CDM1226 Series
Product details
| Connector Type A |
M12 Receptacle |
| Connector Type B |
Free End |
| No. of Positions |
12 Positions |
| Sensor Contact Type |
Solder Socket |
| Sensor Connector Mounting |
Straight Panel Mount |
| Connector Coding |
A Coded |
| Contact Material |
Brass |
| Current Rating |
1.5A |
| Product Range |
CDM1226 Series |
| Sensor Connector Size |
M12 |
| Sensor Connector Gender |
Female |
| Cable Length - Metric |
500mm |
| Cable Length - Imperial |
19.7" |
| IP / NEMA Rating |
IP67 |
| Connector Body Material |
Nylon 6.6 (Polyamide 6.6) Body |
| Contact Plating |
Gold |
| Voltage Rating |
30V |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
SAME SKY |
| Part Number |
CDM1226-12A-FW-R16-050-67 |
| Quantity |
Each |
| Technical Data Sheet (70.00B) EN |
View or download |
