Product Overview

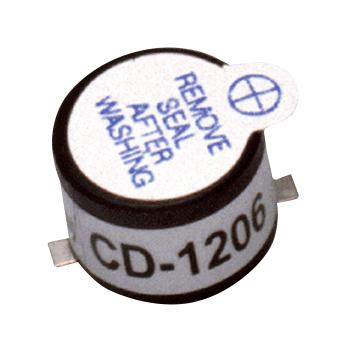

SAME SKY CD-1206-SMT Magnetic Buzzer Transducer, 94 dB, 2.4 kHz, 4 to 8 V, Surface Mount
Product details
| Transducer Function |
Buzzer |
| Tones |
- |
| Supply Voltage Max |
8V |
| Current Rating |
40mA |
| Capacitance |
- |
| Lead Wire |
- |
| Housing Material |
PPS (Polyphenylene Sulfide) |
| Operating Temperature Min |
-40°C |
| Product Range |
- |
| Supply Voltage Min |
4V |
| Resonant Frequency |
2.4kHz |
| Sound Pressure Level (SPL) |
94dB |
| Drive Circuit |
External |
| Transducer Mounting |
Surface Mount |
| IP Rating |
- |
| Operating Voltage Range |
4V to 8V |
| Operating Temperature Max |
70°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
SAME SKY |
| Part Number |
CD-1206-SMT |
| Quantity |
Each |
| Technical Data Sheet (74.00B) EN |
View or download |
