Product Overview

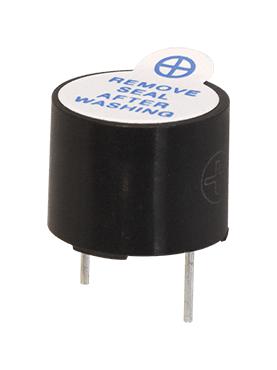

SAME SKY CMI-1295IC-0585T Magnetic Buzzer Indicator, Single, 85 dB, 2.4 kHz, 4 to 7 V, Through Hole
Product details
| Transducer Function |
Buzzer |
| Supply Voltage Max |
7V |
| Drive Circuit |
Internal |
| Current Rating |
30mA |
| Transducer Mounting |
Through Hole |
| Product Range |
- |
| Operating Temperature Min |
-30°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Supply Voltage Min |
4V |
| Tones |
Single |
| Sound Pressure Level (SPL) |
85dB |
| Resonant Frequency |
2.4kHz |
| Housing Material |
PBT (Polybutylene Terephthalate) |
| Operating Voltage Range |
4VDC to 7VDC |
| Operating Temperature Max |
70°C |
Other details
| Brand |
SAME SKY |
| Part Number |
CMI-1295IC-0585T |
| Quantity |
Each |
| Technical Data Sheet (79.00B) EN |
View or download |
