Product Overview

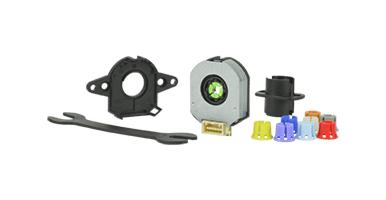

SAME SKY AMT222C-V Rotary Encoder, Encoder Kit, Capacitive, Absolute, 4096 PPR, Radial
Product details
| Encoder Technology |
Capacitive |
| Encoder Resolution |
4096PPR |
| Orientation |
Radial |
| Encoder Output |
SPI |
| Product Range |
AMT22 Series |
| Rotational Life Cycles |
- |
| Shaft Type |
- |
| Shaft Diameter |
- |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
105°C |
| Termination |
Connector |
| Encoder Type |
Absolute |
| No. of Detents |
- |
| Push Switch |
- |
| Encoder Mounting |
Motor |
| Rotational Speed Max |
8000rpm |
| No. of Channels |
- |
| Shaft Length |
- |
| Supply Voltage Min |
3.8V |
| Operating Temperature Min |
-40°C |
| IP Rating |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
SAME SKY |
| Part Number |
AMT222C-V |
| Quantity |
Each |
| Technical Data Sheet (70.00B) EN |
View or download |
