Product Overview

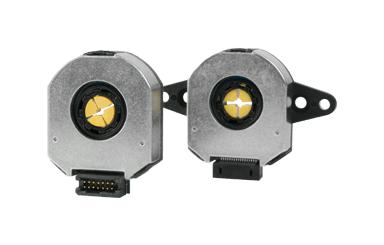

SAME SKY AMT112Q-4096-5000-S Rotary Encoder, Encoder Kit, Capacitive, Incremental, 4096 PPR, Radial
Product details
| Encoder Technology |
Capacitive |
| Encoder Resolution |
4096PPR |
| Orientation |
Radial |
| Encoder Output |
Line Driver, Quadrature |
| Product Range |
AMT11 Series |
| Rotational Life Cycles |
- |
| Shaft Type |
- |
| Shaft Diameter |
5mm |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
125°C |
| Termination |
14 Pin Connector |
| Encoder Type |
Incremental |
| No. of Detents |
- |
| Push Switch |
- |
| Encoder Mounting |
Motor |
| Rotational Speed Max |
4000rpm |
| No. of Channels |
- |
| Shaft Length |
9mm |
| Supply Voltage Min |
4.5V |
| Operating Temperature Min |
-40°C |
| IP Rating |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
SAME SKY |
| Part Number |
AMT112Q-4096-5000-S |
| Quantity |
Each |
| Technical Data Sheet (68.00B) EN |
View or download |
