Product Overview

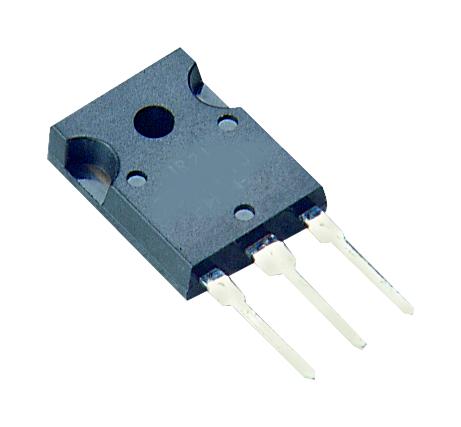

STMICROELECTRONICS STGW75M65DF2 IGBT, 120 A, 1.65 V, 468 W, 650 V, TO-247, 3 Pins
Product details
| Continuous Collector Current |
120A |
| Power Dissipation |
468W |
| Transistor Case Style |
TO-247 |
| Operating Temperature Max |
175°C |
| Product Range |
M Series |
| Collector Emitter Saturation Voltage |
1.65V |
| Collector Emitter Voltage Max |
650V |
| No. of Pins |
3Pins |
| Transistor Mounting |
Through Hole |
| SVHC |
No SVHC (05-Nov-2025) |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STGW75M65DF2 |
| Quantity |
Each |
| Technical Data Sheet (887.44KB) EN |
View or download |
