Product Overview

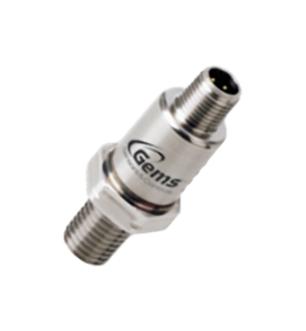

3100S0016G05E000 is a 3100 series pressure transducer. It offers high levels of stability and reliability with proven sputtered thin film technology and unbeatable price performance ratio in a small package size. A broad choice of electrical and pressure connections allows stock configurations to suit most applications without modification.
- 0 to 10V output
- Pressure range from 0 to 16barG
- G1/4 A external soft seal European threads
- M12 x 1P (4-pin) electrical connection
- Exceptional long term stability
- 0.2% FS/YR (non-cumulative) long term drift
- 0.25% FS accuracy and 0.83% FS/100°F (1.5% FS/100°C) thermal error
- 304 stainless steel housing and IP67 enclosure
- UL recognized files #E219842 and E174228
- Operating temperature range from -40°F to 257°F (-40°C to 125°C)
Product details
| Pressure Type |
Gauge |
| Operating Pressure Min |
0bar |
| Pressure Port Size |
G1/4A |
| Supply Voltage Min |
2VDC |
| Media Type |
- |
| Sensor Output Type |
0V to 10V |
| Operating Temperature Min |
-40°C |
| Product Range |
3100 Series |
| Pressure Port Type |
Male Thread |
| Operating Pressure Max |
16bar |
| Transducer Connection / Termination |
4 Pin M12 Connector |
| Supply Voltage Max |
30VDC |
| Output Interface |
- |
| Housing Material |
304 Stainless Steel |
| Operating Temperature Max |
125°C |
Other details
| Brand |
GEMS SENSORS |
| Part Number |
3100S0016G05E000 |
| Quantity |
Each |
| Technical Data Sheet (1.45MB) EN |
View or download |
