Product Overview

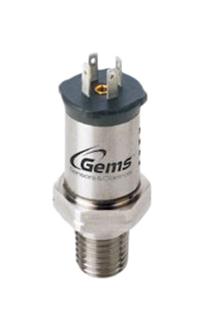

3100B0025G01B000 is a 3100 series pressure transducer. It offers high levels of stability and reliability with proven sputtered thin film technology and unbeatable price performance ratio in a small package size. A broad choice of electrical and pressure connections allows stock configurations to suit most applications without modification.
- 4 to 20mA output
- Pressure range from 0 to 25barG
- G1/4 A external European threads
- Industrial DIN 9.4mm electrical connection
- Exceptional long term stability
- 0.2% FS/YR (non-cumulative) long term drift
- 0.25% FS accuracy and 0.83% FS/100°F (1.5% FS/100°C) thermal error
- 304 stainless steel housing and IP67 enclosure
- UL recognized files #E219842 and E174228
- Operating temperature range from -40°F to 257°F (-40°C to 125°C)
Product details
| Pressure Type |
Gauge |
| Operating Pressure Min |
0bar |
| Pressure Port Size |
G1/4A |
| Supply Voltage Min |
0 |
| Media Type |
- |
| Sensor Output Type |
4mA to 20mA |
| Operating Temperature Min |
-40°C |
| Product Range |
3100 Series |
| Pressure Port Type |
Male Thread |
| Operating Pressure Max |
25bar |
| Transducer Connection / Termination |
DIN Connector |
| Supply Voltage Max |
30VDC |
| Output Interface |
- |
| Housing Material |
304 Stainless Steel |
| Operating Temperature Max |
125°C |
Other details
| Brand |
GEMS SENSORS |
| Part Number |
3100B0025G01B000 |
| Quantity |
Each |
| Technical Data Sheet (1.45MB) EN |
View or download |
