Product Overview

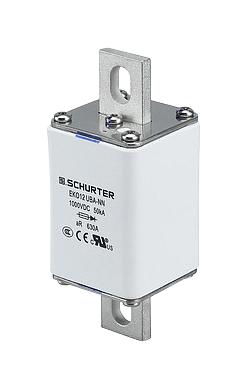

8060.0068 is an EKO11 series high-performance HV fuse designed for industrial and energy applications. This square-body fuse provides safety and reliability, while its robust construction enables it to withstand mechanical vibration, shock, chemical exposure, and extreme temperatures ranging from -40 °C to +125 °C. Its ceramic housing and tin-plated copper alloy terminals ensure durability and stable electrical performance, even under harsh operating conditions. The fuse is suitable for a wide range of applications, including charging infrastructure, manual service disconnectors, energy storage systems (BESS), including packs, racks, PCS, sections, modules, and PDUs, as well as power conversion devices such as UPS systems, inverters, rectifiers, and drives. It is also suitable for industrial equipment, including heaters, welding equipment, metalworking equipment, and other industrial machinery.
- DIN bolted A mounting
- 1000V DC, 1250V AC rated voltage
- 315A rated current
- Size of length 80mm x width 43mm x height 43mm
- Mechanical vibration and shock resistance
- 80W typical power dissipation
- Chemical load and temperature shocks resistance
Product details
| Product Range |
EKO Series |
| Voltage Rating VAC |
1.25kV |
| Fuse Size Metric |
80mm x 43mm x 43mm |
| Blow Characteristic |
- |
| Fuse Current |
315A |
| Voltage Rating VDC |
1kV |
| Fuse Size Imperial |
3.15" x 1.69" x 1.69" |
| SVHC |
No SVHC (05-Nov-2025) |
