Product Overview

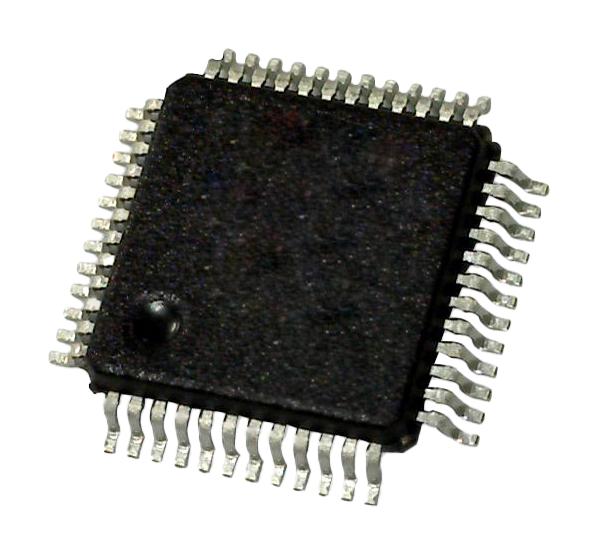

STMICROELECTRONICS STM32U3C5CIT6 ARM MCU, STM32 Family STM32U3 Series STM32U3C5xx Group Microcontrollers, ARM Cortex-M33F, 32 bit
Product details
| Product Range |
STM32 Family STM32U3 Series STM32U3C5xx Group Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
2MB |
| IC Case / Package |
LQFP |
| Interfaces |
I2C, I3C, FDCAN, LPUART, SAI, SDMMC, SPI, UART, USART, USB |
| ADC Channels |
11Channels |
| Supply Voltage Min |
1.71V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
STM32U3 |
| SVHC |
No SVHC (05-Nov-2025) |
| Device Core |
ARM Cortex-M33F |
| Operating Frequency Max |
96MHz |
| No. of Pins |
48Pins |
| No. of I/O's |
37I/O's |
| RAM Memory Size |
640KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
3.6V |
| Operating Temperature Max |
105°C |
| MCU Family |
STM32 |
| Qualification |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32U3C5CIT6 |
| Quantity |
Each |
| Technical Data Sheet (4.39MB) EN |
View or download |
| Product Change Notice (292.41KB) EN |
View or download |
