Description
Product Overview

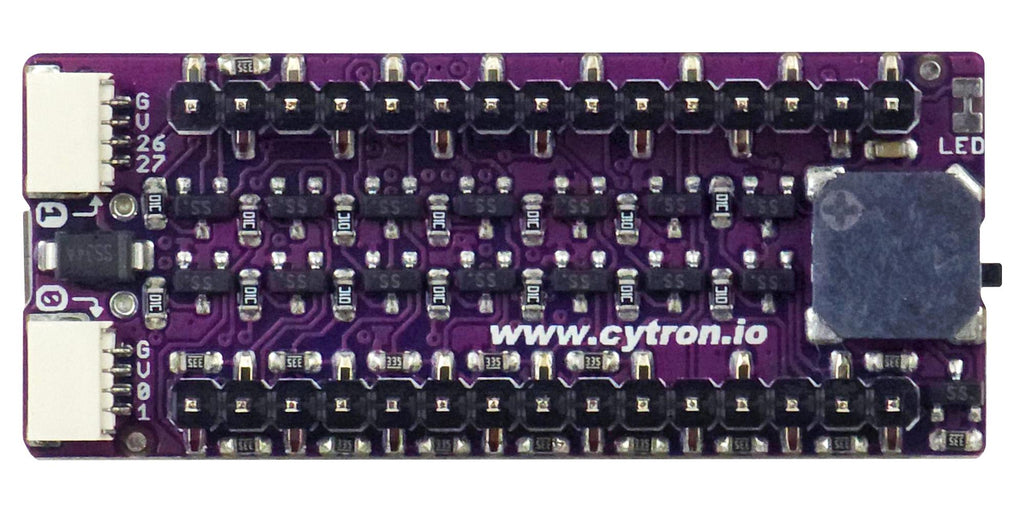

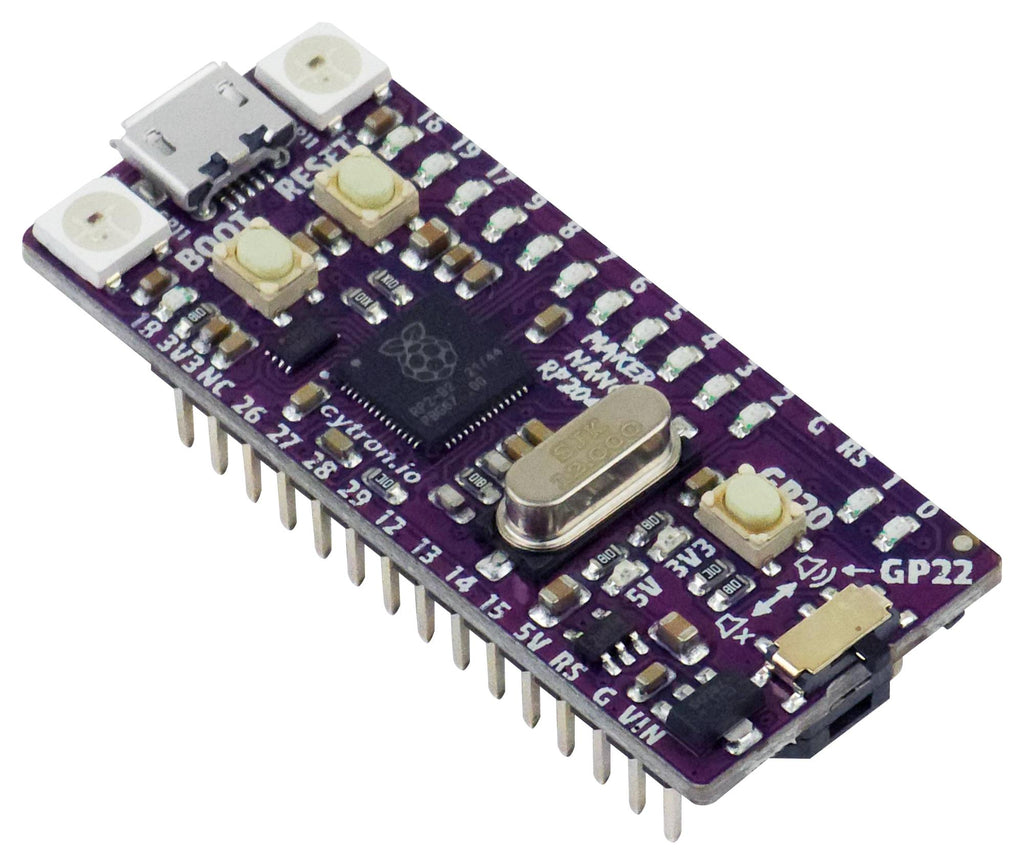

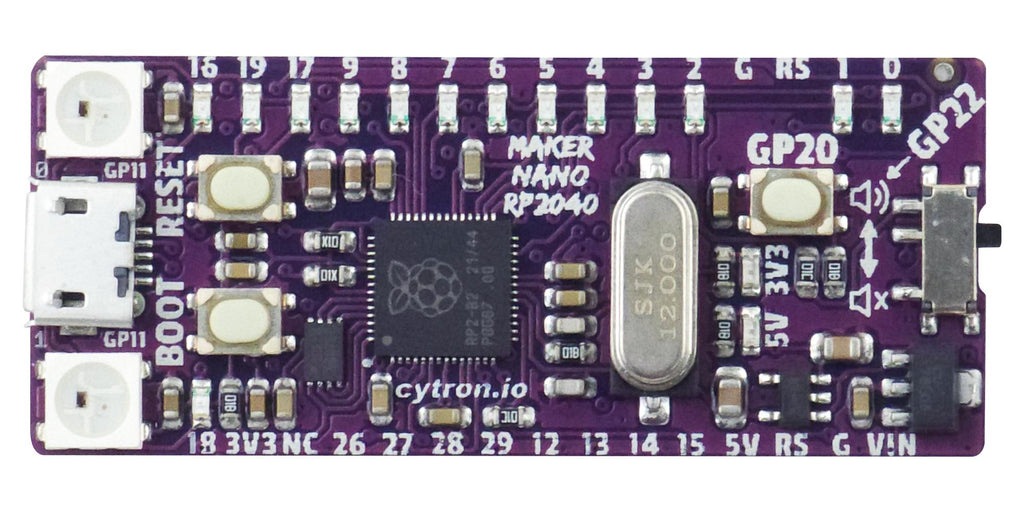

MAKER-NANO-RP2040 is a maker nano kit. The Maker Nano RP2040 is a compact yet powerful microcontroller designed for advanced projects. Featuring the RP2040 MCU from Raspberry Pi, it offers enhanced performance with dual-core Arm Cortex-M0+ processors, 264KB RAM, and 2MB Flash memory. With an Arduino Nano form factor, it's compatible with most Nano daughter boards and breadboard-friendly for custom circuits. Program it using Arduino IDE, CircuitPython, or MicroPython and enjoy onboard features like LEDs, a buzzer, and Maker Ports for versatile connectivity.
- Power input voltage (Vin) range from 7 to 30V DC
- DC +5V maximum current (including onboard usage) is 100mA
- DC +3V3 maximum current (including onboard usage) is 50mA
- Powerful processor: RP2040 MCU with dual-core Arm Cortex-M0+ for advanced projects
- 14 GPIO status indicator LEDs, 2 RGB LEDs, and 1 piezo buzzer
- 16MHz clock speed
Contents
Maker nano board RP2040, 2x grove to JST-SH (Qwiic / STEMMA QT) cable.
Product details
| Silicon Manufacturer | Raspberry Pi |
| Core Architecture | ARM |
| Silicon Core Number | RP2040 |
| For Use With | Arduino Nano Boards |
| Silicon Family Name | - |
| Core Sub-Architecture | Cortex-M0+ |
| Kit Contents | Maker Nano Board RP2040, 2x Grove to JST-SH (Qwiic / STEMMA QT) Cable |
| SVHC | No SVHC (05-Nov-2025) |
Other details
| Brand | CYTRON |
| Part Number | MAKER-NANO-RP2040 |
| Quantity | Each |
| Technical Data Sheet (3.07MB) EN | View or download |
