Description
Product Overview

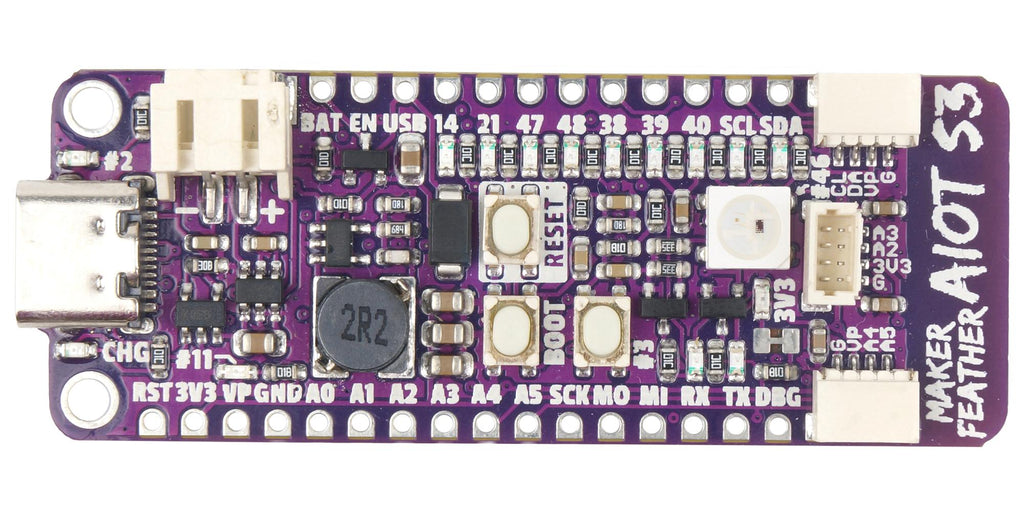

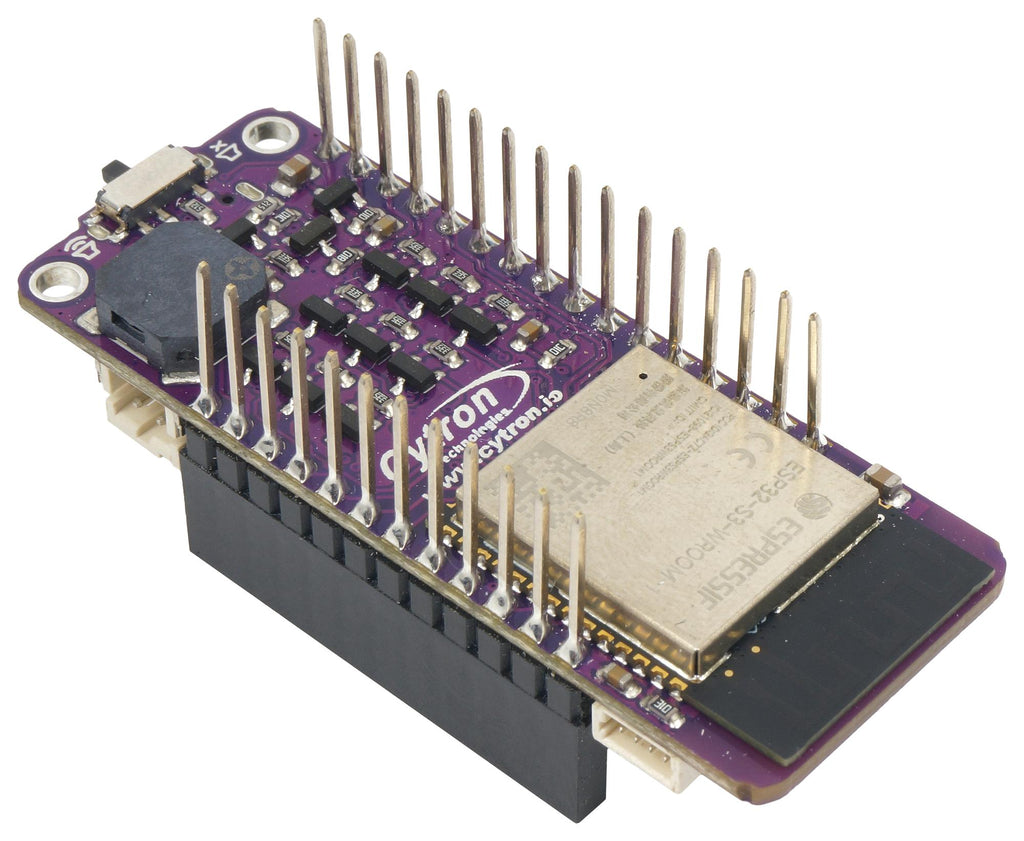

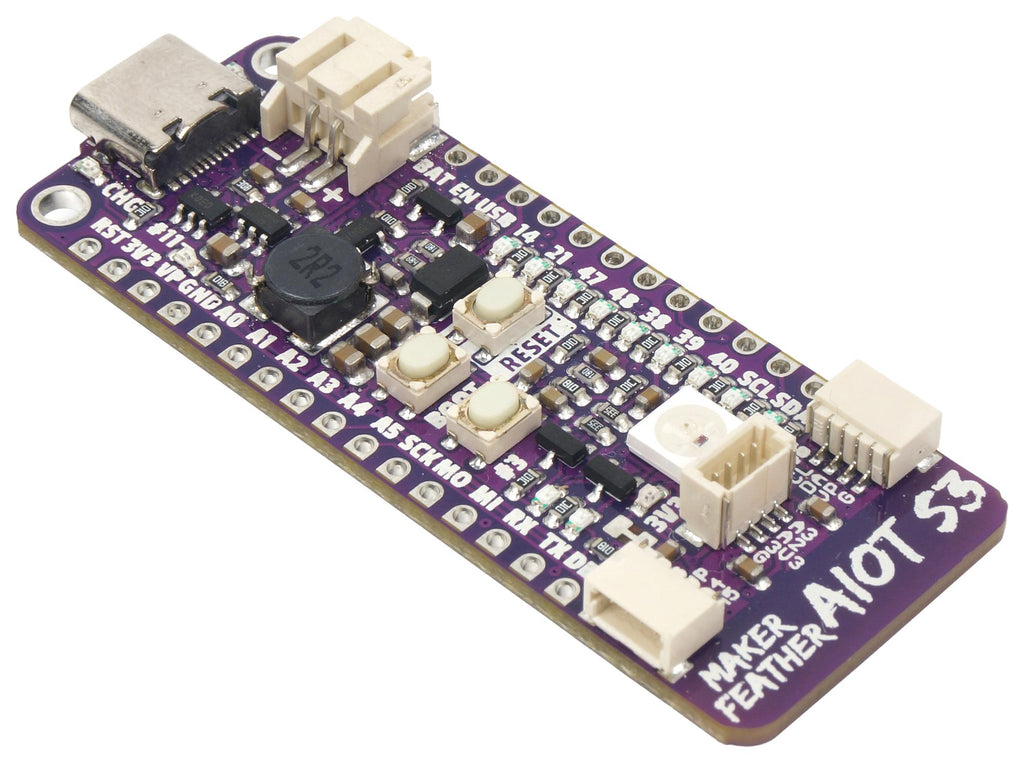

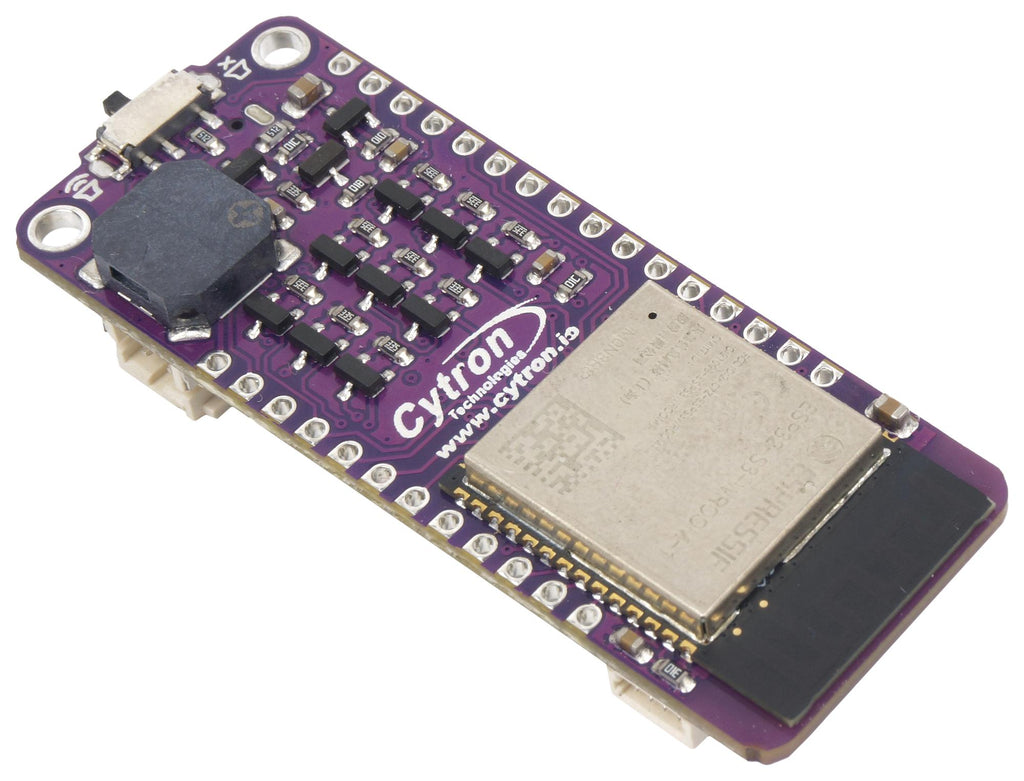

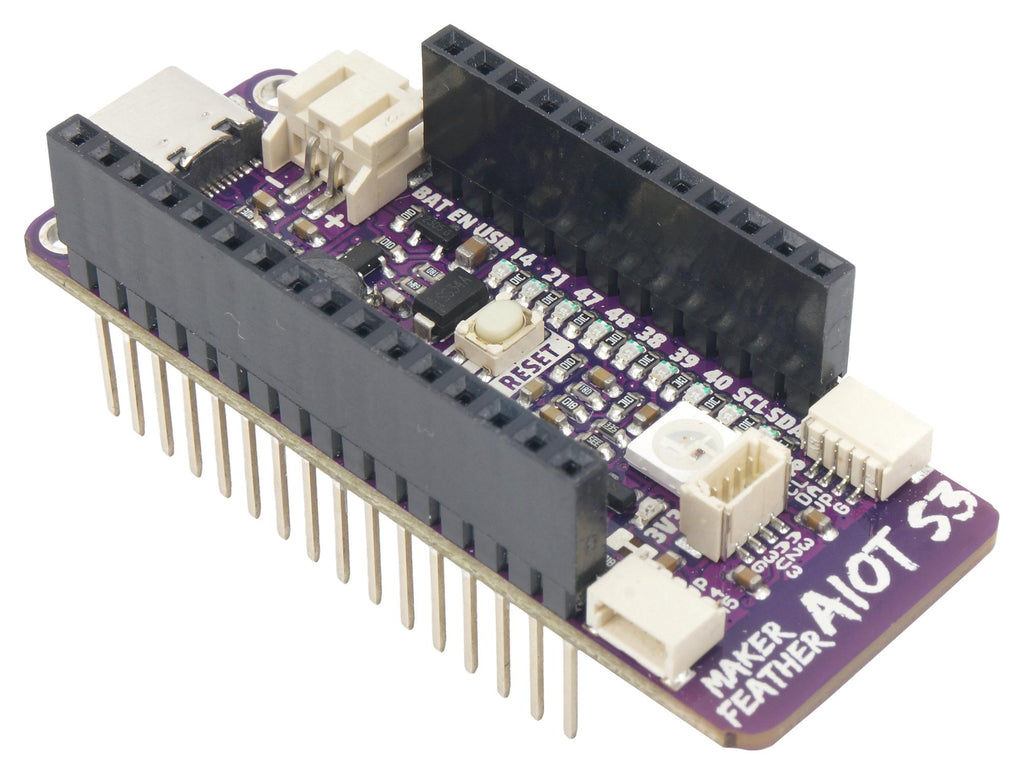

MAKER-FEATHER-AIOT-S3 is a simplifying AIoT board with ESP32-S3. It supports Arduino, CircuitPython, MicroPython and Espressif IDF.
- Adafruit Feather form factor
- Single-cell LiPo connector with overcharge / over-discharge protection circuit, rechargeable via USB
- 11x status indicator LEDs for GPIOs
- 1x programmable piezo buzzer (connected to GPIO12)
- 1x reset button, 1x RGB LEDs
- 1x user programmable button (GPIO3)
- 3x maker ports, compatible with Qwiic, STEMMA QT, and Grove (via conversion cable)
- Power input voltage is 5.5V DC maximum (USB (VUSB))
- Internal pull resistor is 45kohm (pull-up (RPU), pull-down (RPD))
- Operating temperature range from -20 to 65°C
Contents
Maker Feather AIoT S3 board ESP32-S3-WROOM-1-N8R8, 3x Grove to JST-SH (Qwiic / STEMMA QT) cable.
Product details
| Silicon Manufacturer | Espressif Systems |
| Core Architecture | Xtensa |
| Silicon Core Number | ESP32-S3-WROOM-1-N8R8 |
| For Use With | Cytron Development Boards |
| Silicon Family Name | ESP32-S3 |
| Core Sub-Architecture | LX7 |
| Kit Contents | Maker Feather AIoT S3 Board ESP32-S3-WROOM-1-N8R8, 3x Grove to JST-SH (Qwiic / STEMMA QT) Cable |
| SVHC | No SVHC (05-Nov-2025) |
Other details
| Brand | CYTRON |
| Part Number | MAKER-FEATHER-AIOT-S3 |
| Quantity | Each |
| Technical Data Sheet (2.54MB) EN | View or download |
