Product Overview

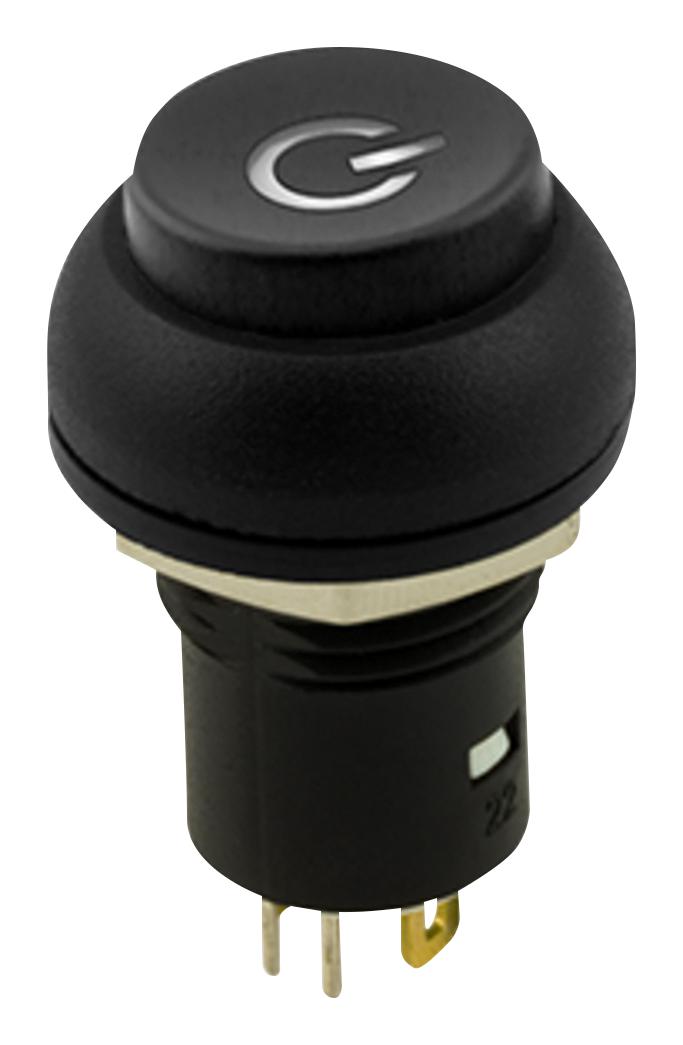

PB5L-M-BKGR-P-R-67 is a PB5L series, 12mm, panel mount, IP67 rated, illuminated power emblem, push button switch with solder lug switch terminal.
- Black round button raised ABS (UL94HB) actuator (cap)
- Green LED with 3.6V max forward voltage at IF=20 mA
- SPST circuit and Off-(On) switch function (momentary)
- Rated voltage: 12V DC, 24V DC, 125V AC and rated current: 1A at V DC, 0.5A at V DC and 1.5A at V AC
- 1000V AC typ withstanding voltage for 1 minute
- 50mohm max contact resistance and 100Mohm min insulation resistance
- 400gf typ operating force and max actuator travel is 3mm
- Life: 10,000cycles electrical and 100,000cycles mechanical
- Black PA (UL94V-2) base, gold plated copper terminals, nickel plated zinc alloy nut
- Dimensions (LxWxH) is 11.8 x 11.8 x 24.8mm (0.46 x 0.46 x 0.98in)
Product details
| Product Range |
PB5L Series |
| Contact Configuration |
SPST-NO-DM |
| Pushbutton Actuator Style |
Round Raised |
| Contact Current AC Max |
1.5A |
| Contact Current DC Max |
1A |
| IP Rating |
IP67 |
| Switch Terminals |
Solder Lug |
| Panel Cutout (H x W) |
- |
| Panel Cutout Diameter |
12mm |
| Switch Operation |
Off-(On) |
| Actuator / Cap Colour |
Black |
| Contact Voltage VAC |
125V |
| Contact Voltage VDC |
12V |
| Switch Mounting |
Panel Mount |
| Illumination Colour |
Green |
| SVHC |
No SVHC (05-Nov-2025) |
Other details
| Brand |
SAME SKY |
| Part Number |
PB5L-M-BKGR-P-R-67 |
| Quantity |
Each |
| Technical Data Sheet (381.65KB) EN |
View or download |
