Product Overview

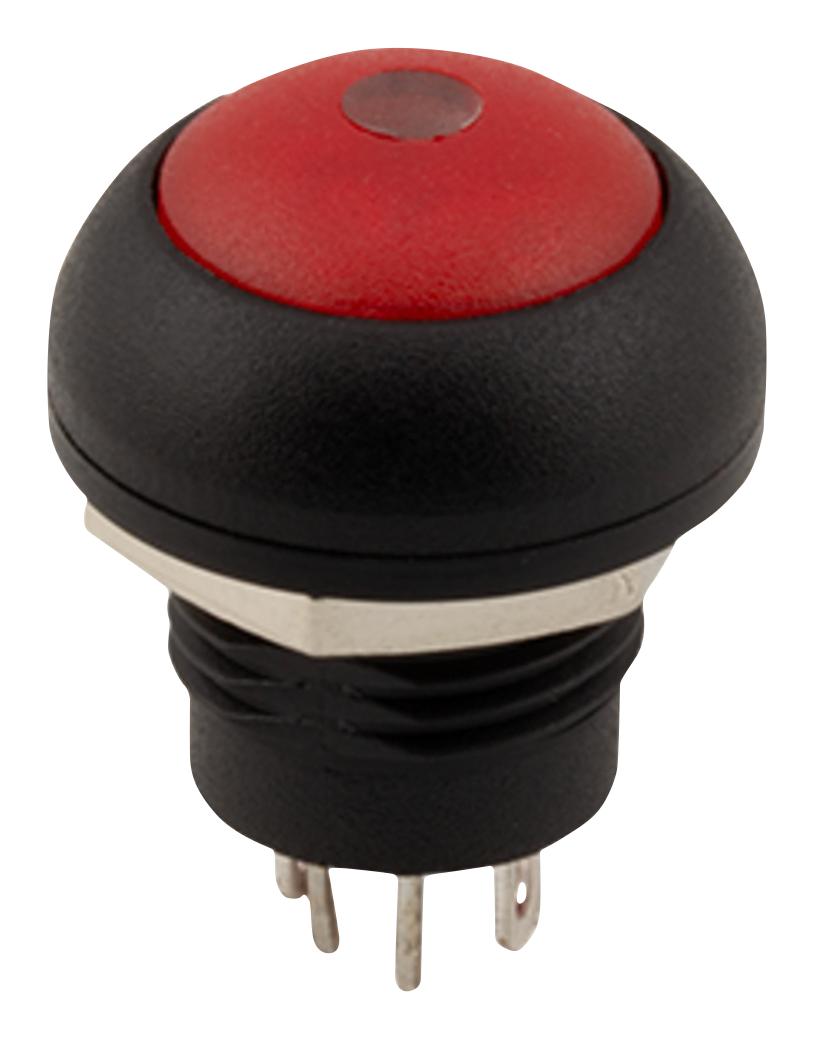

PB4L-M-RRG-D-67 is a PB4L series, 12mm, panel mount, IP67 rated, illuminated push button switch with solder lug switch terminal.
- Red round domed PA (UL94V-2) actuator (cap)
- Green LED with 3.6V max forward voltage at IF=20 mA
- SPST-NO circuit and Off-(On) switch function
- Rated voltage: 250V AC and rated current: 0.2A (at V AC)
- 1000V AC typ withstanding voltage for 1 minute
- 50mohm max contact resistance and 100Mohm min insulation resistance
- 500gf typ operating force and max actuator travel is 2.5mm
- Life: 30,000cycles electrical and 200,000cycles mechanical
- Black PA (UL94V-2) base, silver plated copper terminals, nickel plated zinc alloy nut
- Operating temperature range from -20 to 85°C and dimensions (LxWxH) is 11.85 x 11.85 x 18.7mm
Product details
| Product Range |
PB4L Series |
| Contact Configuration |
SPST-NO-DM |
| Pushbutton Actuator Style |
Round Domed |
| Contact Current AC Max |
200mA |
| Contact Current DC Max |
- |
| IP Rating |
IP67 |
| Switch Terminals |
Solder Lug |
| Panel Cutout (H x W) |
- |
| Panel Cutout Diameter |
12mm |
| Switch Operation |
Off-(On) |
| Actuator / Cap Colour |
Red |
| Contact Voltage VAC |
250V |
| Contact Voltage VDC |
- |
| Switch Mounting |
Panel Mount |
| Illumination Colour |
Green, Red |
| SVHC |
No SVHC (05-Nov-2025) |
Other details
| Brand |
SAME SKY |
| Part Number |
PB4L-M-RRG-D-67 |
| Quantity |
Each |
| Technical Data Sheet (316.29KB) EN |
View or download |
