Product Overview

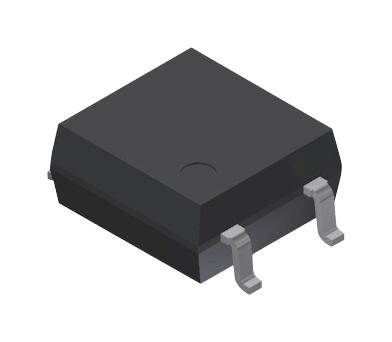

AQY414SX is a PhotoMOS GU SOP 1 Form B ® normally closed MOSFET relay. Suitable for power supply, measuring instruments, security equipment, telephone equipment and sensing equipment applications.
- Miniature SOP4-pin package (W x L x H) is 4.3 x 4.4 x 2.1mm
- Controls low-level analogue signals
- Low-level off-state leakage current of max 1μA
- Load voltage is 400V
- Load current is 100mA
- 1500Vrms I/O isolation voltage
- AC/DC load type
- Operating Ambient temperature range from -40 to +85°C
- Low on-resistance
Product details
| Contact Form |
SPST-NC (1 Form B) |
| Load Voltage Max |
400V |
| MOSFET Relay Package Style |
SOP-4 |
| Relay Terminals |
Gull Wing |
| Isolation Voltage |
1.5kV |
| Off State Leakage Current Max |
1µA |
| SVHC |
No SVHC (25-Jun-2025) |
| Load Type |
AC / DC |
| Load Current |
100mA |
| Relay Mounting |
Surface Mount |
| On State Resistance Max |
35ohm |
| I/O Capacitance Typ |
0.8pF |
| Product Range |
PhotoMOS AQY Series |
Other details
| Brand |
PANASONIC |
| Part Number |
AQY414SX |
| Quantity |
Each |
| Technical Data Sheet (143.00B) EN |
View or download |
