Product Overview

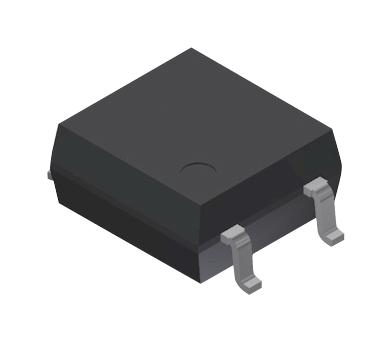

AQY221N2SZ is a PhotoMOS® RF SOP 1 Form A C×R10 MOSFET relay. Both low on-resistance (Low Ron type) and low capacitance (Low Cout type) available at excellent characteristics of C×R10. Suitable for measuring and testing equipment (IC tester, liquid crystal driver tester, semiconductor performance tester, bare board tester, in-circuit tester, function tester, etc), telecommunication and broadcasting equipment, medical equipment (ultrasonic wave diagnostic machine) and multi-point recorder (data logger, warping and thermocouple, etc) applications.
- Small profile of miniature SOP4 -pin
- High speed switching (turn on time: 0.03ms and turn off time is 0.03ms typ)
- Low-level off state leakage current of maximum 10nA of typ 0.01nA
- Load voltage is 40V
- Load current is 120mA
- 1500Vrms isolation voltage
- AC/DC load type
- Operating Ambient temperature range from -40 to +85°C
Product details
| Contact Form |
SPST-NO (1 Form A) |
| Load Voltage Max |
40V |
| MOSFET Relay Package Style |
SOP-4 |
| Relay Terminals |
Gull Wing |
| Isolation Voltage |
1.5kV |
| Off State Leakage Current Max |
10nA |
| SVHC |
No SVHC (25-Jun-2025) |
| Load Type |
AC / DC |
| Load Current |
120mA |
| Relay Mounting |
Surface Mount |
| On State Resistance Max |
12.5ohm |
| I/O Capacitance Typ |
1.5pF |
| Product Range |
PhotoMOS AQY Series |
Other details
| Brand |
PANASONIC |
| Part Number |
AQY221N2SZ |
| Quantity |
Each |
| Technical Data Sheet (144.00B) EN |
View or download |
