Product Overview

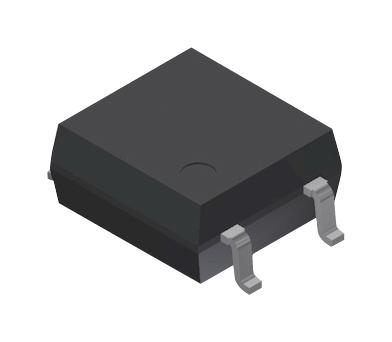

AQY217GSX is a PhotoMOS® GU SOP 1 Form A high capacity MOSFET relay. Suitable for measuring instrument market (tester), security and disaster prevention market (use in I/O sections for alarm and security devices), industrial machinery and equipment applications.
- Miniature SOP4-pin package
- Low on-resistance (typical: 1.8ohm)
- 1µA max off state leakage current
- Load voltage is 200V
- Load current is 0.4A
- 1500Vrms I/O isolation voltage
- AC/DC load type
- Operating Ambient temperature range from -40 to 85°C
Product details
| Contact Form |
SPST-NO (1 Form A) |
| Load Voltage Max |
200V |
| MOSFET Relay Package Style |
SOP-4 |
| Relay Terminals |
Solder |
| Isolation Voltage |
1.5kVrms |
| Off State Leakage Current Max |
1µA |
| SVHC |
No SVHC (25-Jun-2025) |
| Load Type |
AC / DC |
| Load Current |
400mA |
| Relay Mounting |
Surface Mount |
| On State Resistance Max |
2.5ohm |
| I/O Capacitance Typ |
1.5pF |
| Product Range |
AQY Series |
Other details
| Brand |
PANASONIC |
| Part Number |
AQY217GSX |
| Quantity |
Each |
| Technical Data Sheet (141.00B) EN |
View or download |
