Product Overview

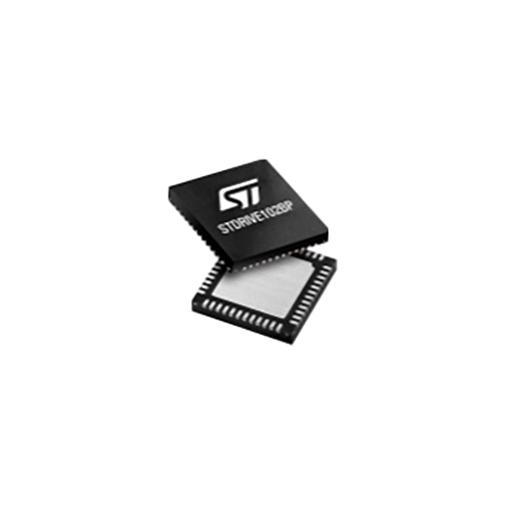

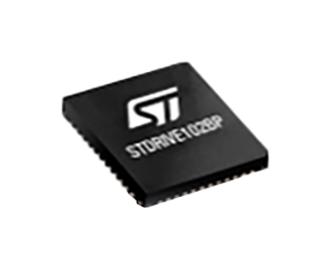

STMICROELECTRONICS STDRIVE102BP Gate Driver, 6 Channels, Non-Isolated, Half Bridge, MOSFET, 48 Pins, VFQFPN-EP
Product details
| No. of Channels |
6Channels |
| Driver Configuration |
Half Bridge |
| No. of Pins |
48Pins |
| IC Mounting |
Surface Mount |
| Source Current |
1A |
| Supply Voltage Min |
6V |
| Operating Temperature Min |
-40°C |
| Input Delay |
50ns |
| Product Range |
- |
| SVHC |
No SVHC (25-Jun-2025) |
| Gate Driver Type |
Non-Isolated |
| Power Switch Type |
MOSFET |
| IC Case / Package |
VFQFPN-EP |
| Input Type |
Logic |
| Sink Current |
2A |
| Supply Voltage Max |
15V |
| Operating Temperature Max |
85°C |
| Output Delay |
45ns |
| Qualification |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STDRIVE102BP |
| Quantity |
Each |
| Technical Data Sheet (5.80MB) EN |
View or download |
